Retightening the Collet ZS-52D <DWX-52D>

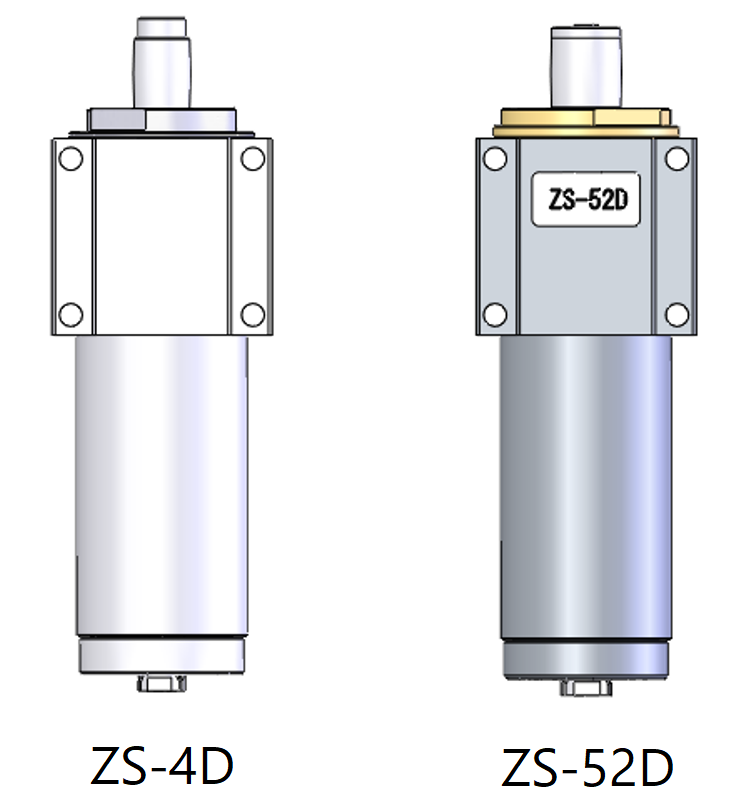

There are two types of spindles. This section presents the case for ZS-52D.
The collet for ZS-52D spindles is ZC-52D.

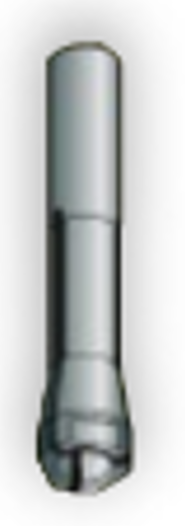

Collet (part used to grip the milling bur)
If milling is continued, the collet will loosen, making it easier for the milling bur to come off. Periodically retighten the collet.
It may be effective to clean the inside of the collet at the same time as retightening it.
Click here for instructions on cleaning the collet ZS-52D: Cleaning the Collet for ZS-52D <DWX-52D>
1 Recommended interval for this work
Once a month, or when the total work time of the spindle exceeds 200 hours (with slight variation depending on the work situation).

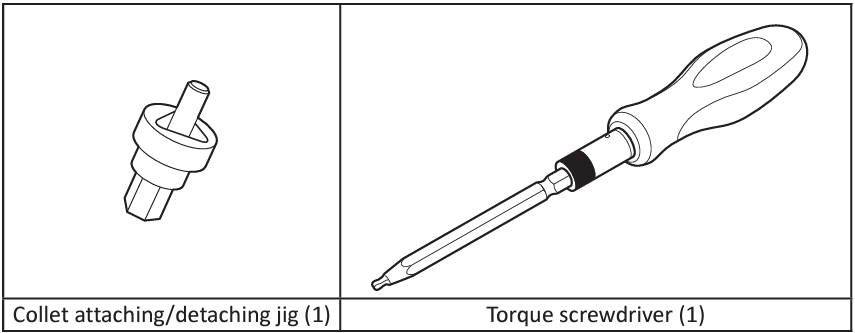

2 Required accessories
- Collet attaching/detaching jig
- Torque screwdriver

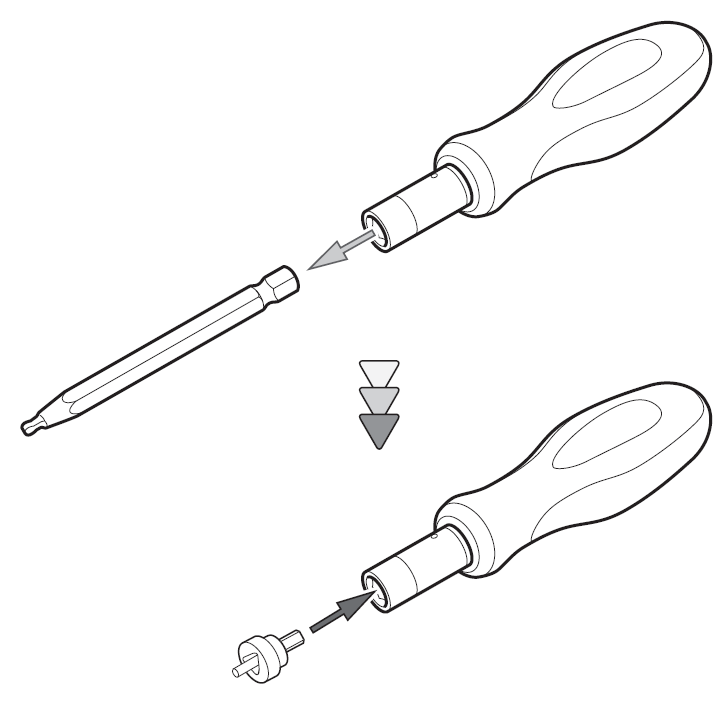

3 Attach the collet attaching/detaching jig to the torque screwdriver.
3.1 Remove the torque screwdriver bit.
3.2 Attach the collet attaching/detaching jig.
Remove the torque sleeve when loosening the collet. Attach the torque sleeve when retightening.
4 Retightening the collet.

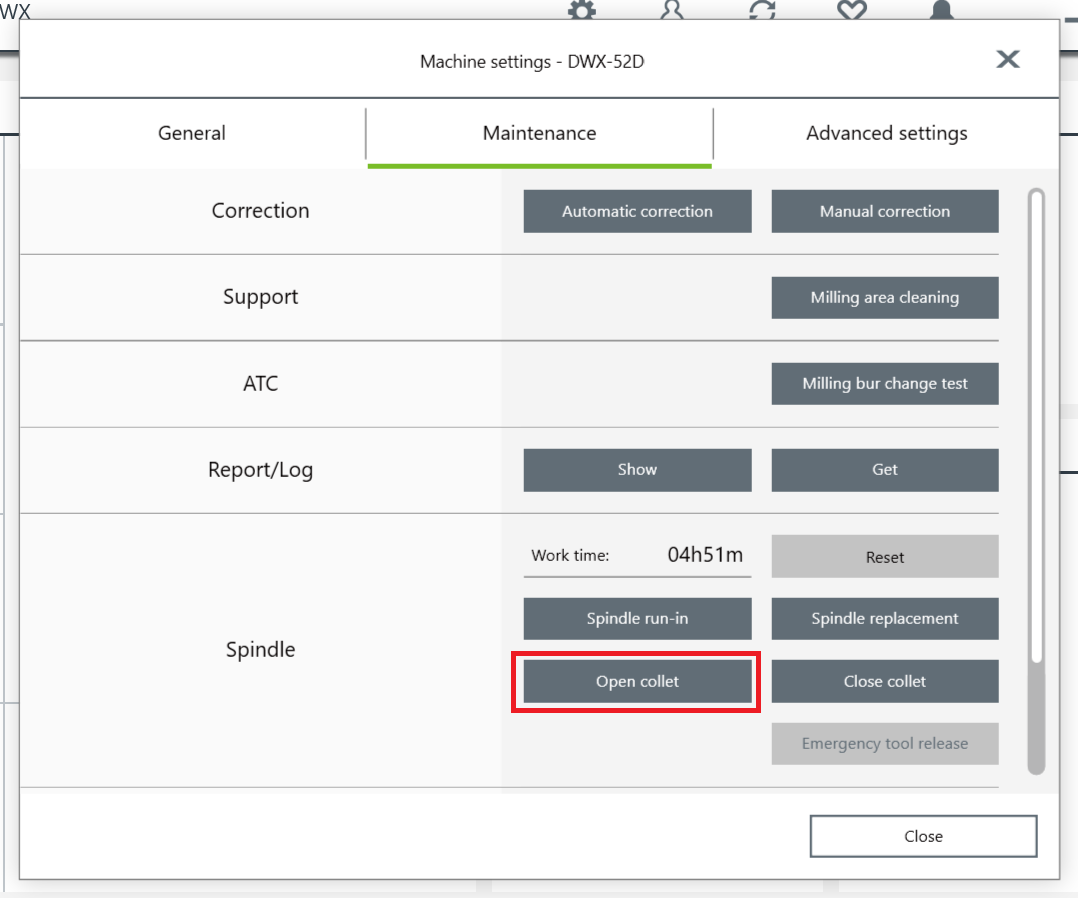

4.1 Clicking VPanel [Machine Settings] > [Maintenance] > [Spindle] > [Collet open].
4.2 Insert the collet into the triangular recess of the collet attaching/detaching jig.

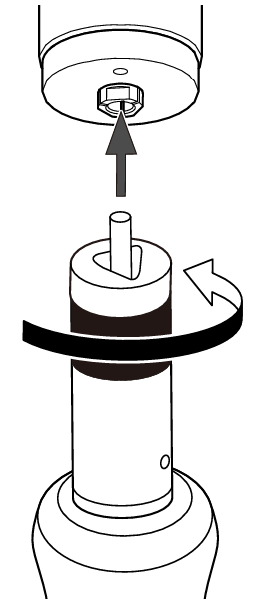

4.3 Tighten the collet with a torque screwdriver until you hear a sound.
4.4 Remove the torque screwdriver and close the front cover.
4.5 Select VPanel [Machine settings] > [Maintenance] > [Close Collet].
