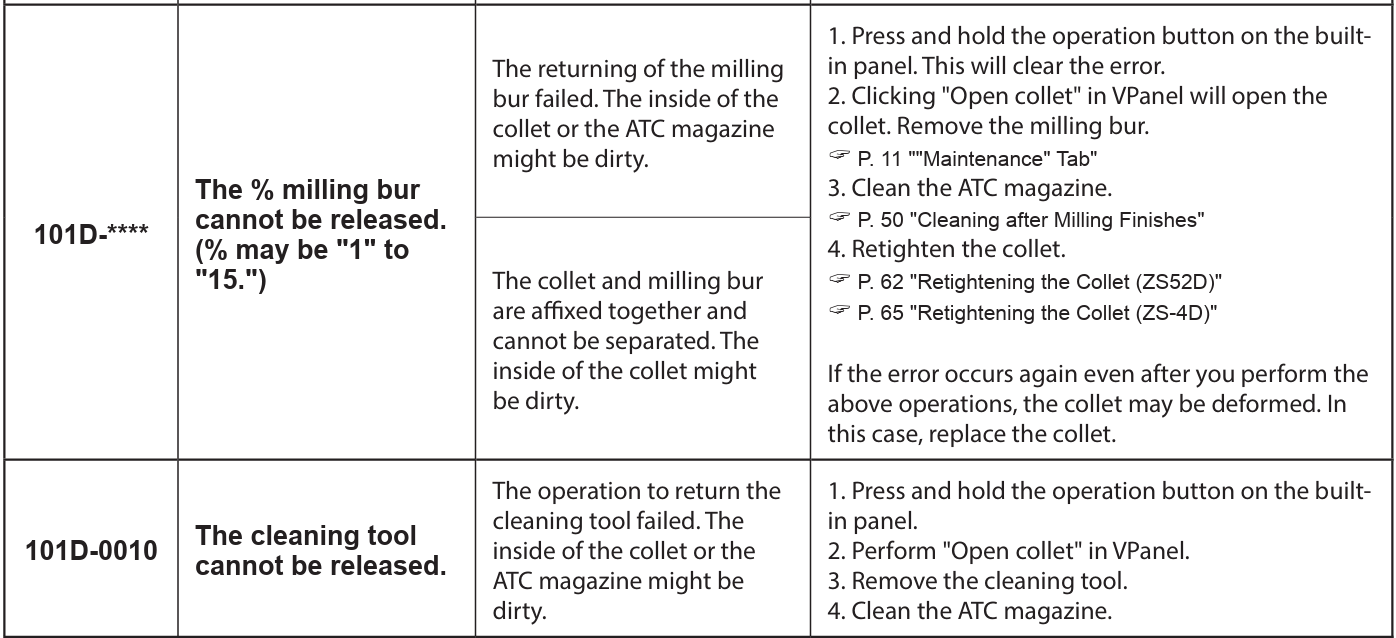

101D-**** The % milling bur cannot be released <DWX-52D>
*We are guiding the user through the manual page.
If the milling bur remains gripped, first remove the material, then proceed to remove the milling bur by clicking on VPanel [Machine Settings] > [Maintenance] > [Open Collet] to complete the operation.
Possible causes

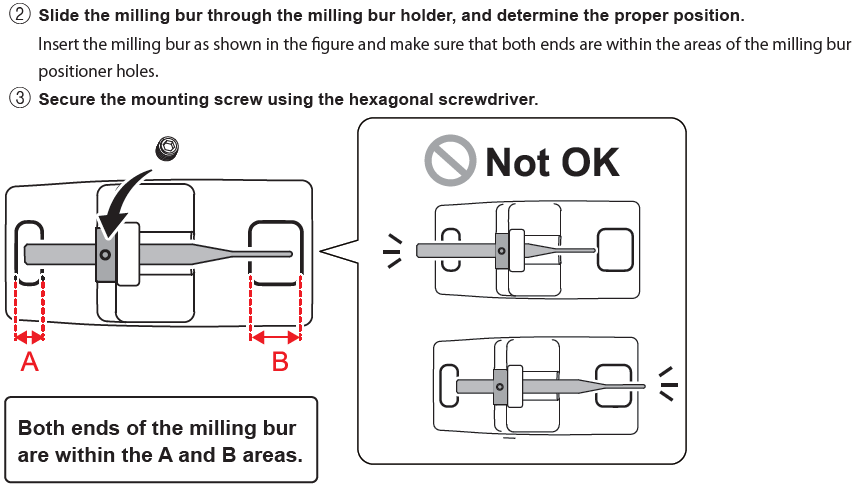

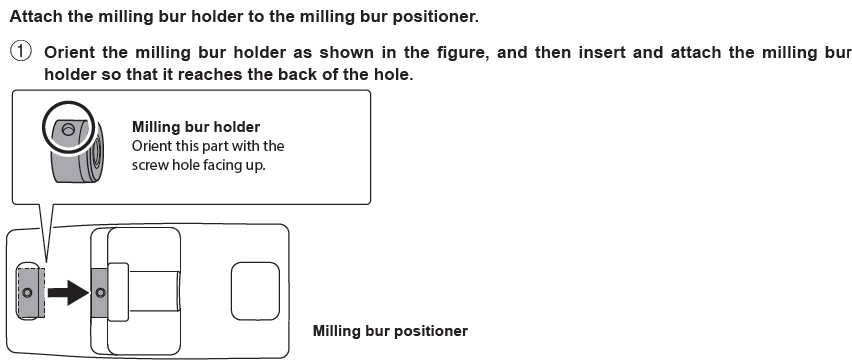

◆ Are the top and bottom of the milling bur holder reversed ?
If the milling bur holder is installed upside down, the stocker cannot be magnetized, and the milling bur cannot be returned.
*There are two types of milling bur holders. Please use the one that is compatible with your model.
- DWX-4, DWX-51D, DWX-52 series (machines with spindle ZS-4D) : ZBH-4D

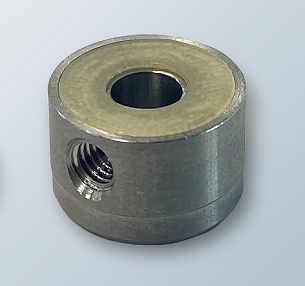

ZBH-4D
- DWX-52 series (machines with spindle ZS-52D), DWX-53DC and DWX-53D: ZBH-52D

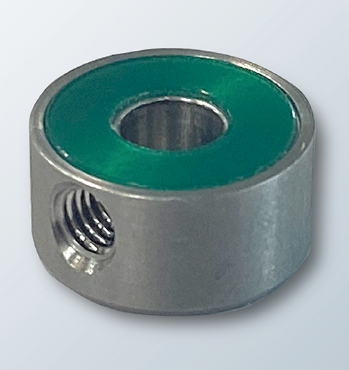

ZBH-52D
◆ If the positional relationship between the milling bur stocker and the milling bur is displaced and the milling bur cannot be released, please perform automatic correction.
*Abnormal noise sounds when the milling bur enters the stocker.
Reference video
◆ Milling waste adheres to the collet, which is the part that chucks (grips) the milling bur.
Detach the collet and clean the inside. Please refer to the following pages.
- Spindle ZS-4D: Cleaning the Collet for ZS-4D <DWX-52D>
- Spindle ZS-52D: Cleaning the Collet for ZS-52D <DWX-52D>
◆ Collet deformation, cracks, chipping
Replace the collet. The collet is consumable.
*The collet must be ordered from your dealer in the same way as the milling bur.
*Brand-new spindle is supplied with a collet.
Reference video
