Cleaning the Collet for ZS-52D <DWX-52D>

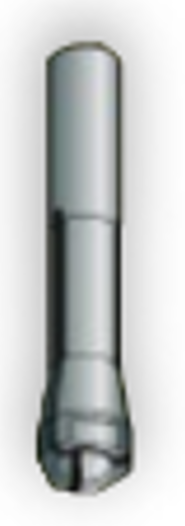

Collet (part used to grip the milling bur)
If milling waste enters the inside of the collet or into the groove, the gripping force (the gripping force of the milling bur) may decrease, resulting in a problem.
Clean the inside of the spindle after removing the collet, and clean the removed collet with a cotton swab, etc. Dry cotton swabs are recommended to prevent damage to the collet, as moisture can cause rust.
Collet cleaning may improve the following problems:
- When milling accuracy is poor.
- 101D-**** The % milling bur cannot be released.
- 101E-**** The % milling bur might be broken.
- 101F-**** The % milling bur chucking has slipped out.
- 102D-**** The spindle experienced overcurrent.

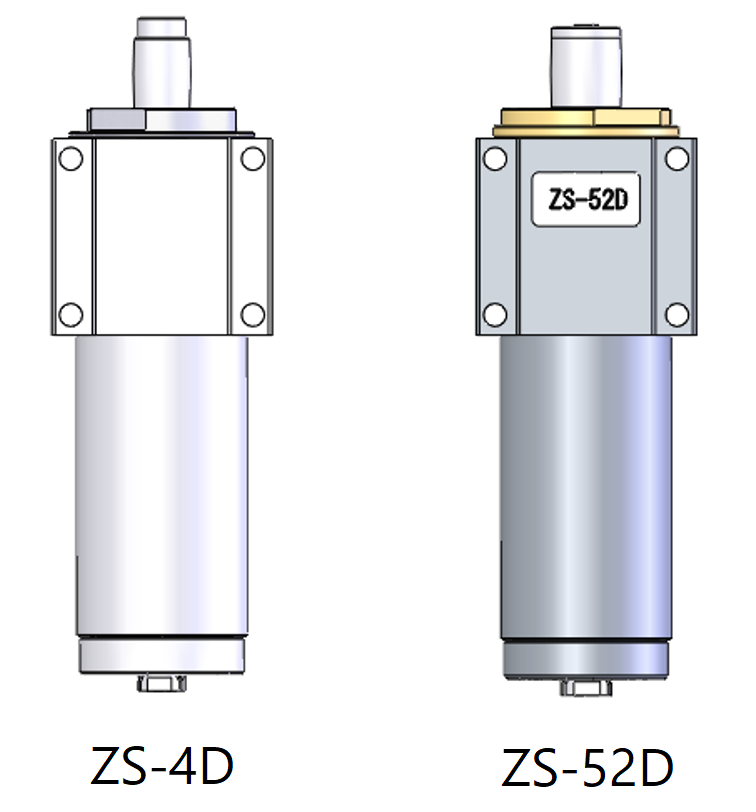

There are two types of spindles. This section presents the case of ZS-52D.
*The collet for ZS-52D spindles is ZC-52D.
*Clicking here for ZS-4D information: Cleaning the Collet for ZS-4D <DWX-52D>

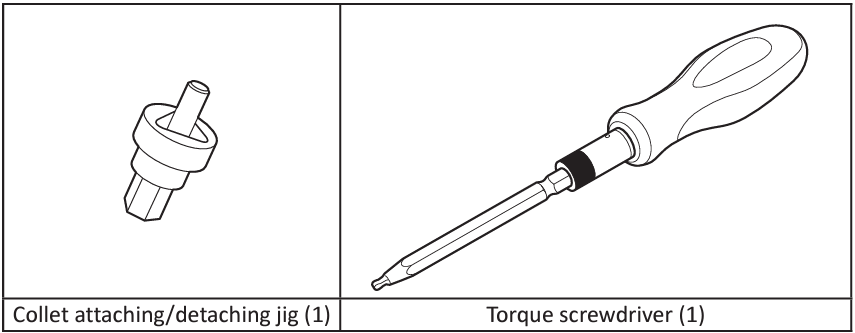

1 Required accessories
- Collet attaching/detaching jig
- Torque screwdriver
2 Attach the collet attaching/detaching jig to the torque screwdriver.

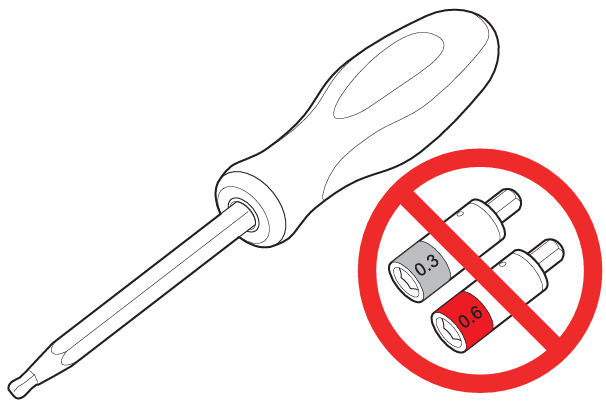

To loosen the collet, remove the torque sleeve. Doing so may damage the sleeve.
2.1 Remove the torque screwdriver bit.
2.2 Remove the torque sleeve.
2.3 Fit the collet attaching/detaching jig to the screwdriver handle.
3 To remove the collet.

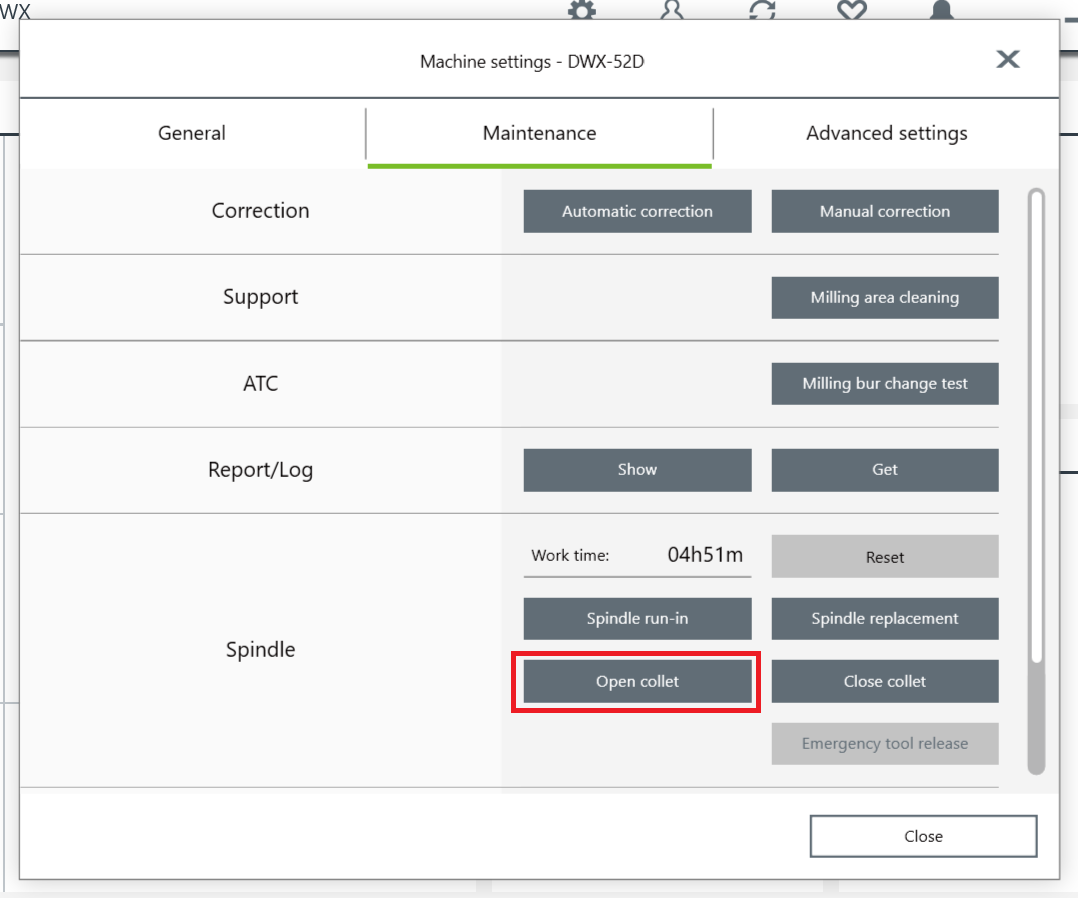

3.1 Clicking VPanel [Machine Settings] > [Maintenance] > [Spindle] > [Collet open]
3.2 Insert the collet attaching/detaching jig into the collet. Insert the collet into the triangular recess.
3.3 Loosen the collet with a torque screwdriver.

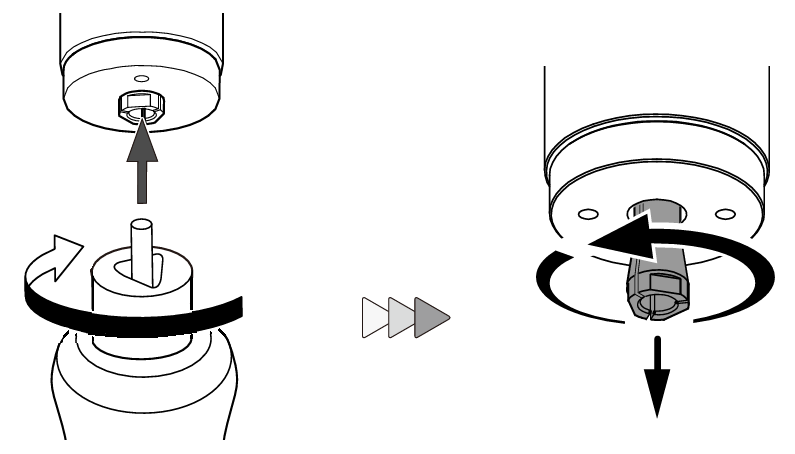

3.4 The collet is removed by turning it in the direction of the arrow.
4 Detach the collet and check that there is no milling waste inside or in the slit.
Outside the milling machine, you can blow it with a pneumatic blower.

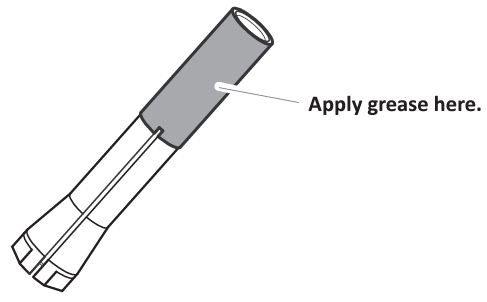

Lightly apply grease to the entire top portion of the collet (the shaded portion in the figure).
5 Attaching the collet.

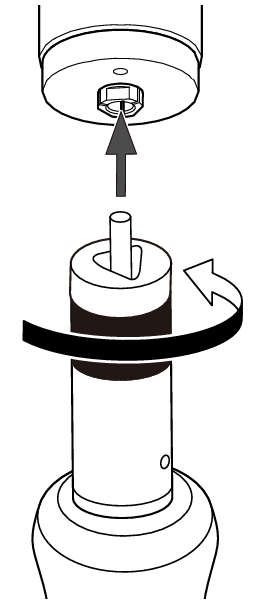

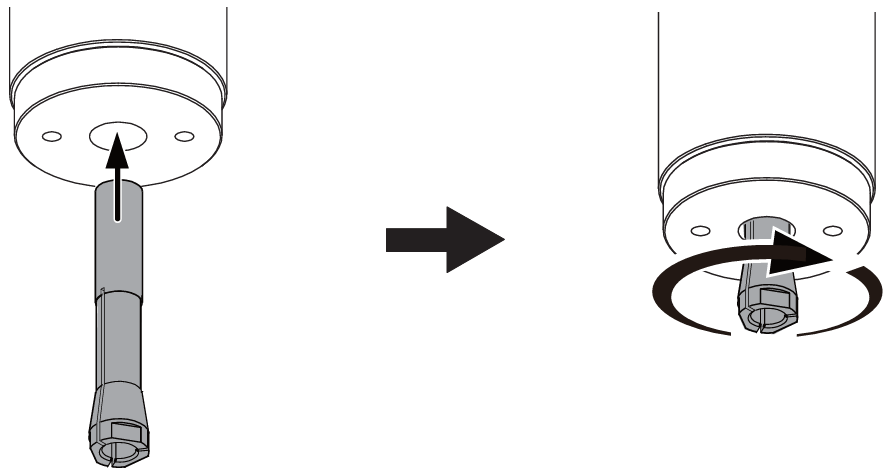

5.1 Insert the collet once in the direction indicated by the arrow.
5.2 Insert the collet into the triangular recess of the collet attaching/detaching jig.
5.3 Attach the torque sleeve and collet attaching/detaching jig to the screwdriver handle.
5.4 Tighten the collet with a torque screwdriver until you hear a sound.
5.5 Remove the torque screwdriver and close the front cover.
5.6 Select VPanel [Machine settings] > [Maintenance] > [Close Collet].
5.7 Perform automatic correction.
