Maintenance of the Regulator <DWX-52D>

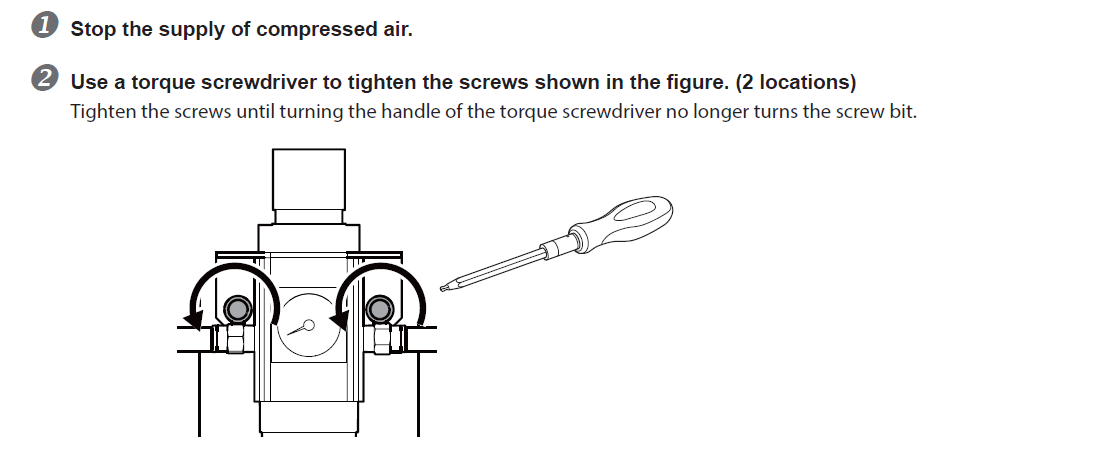

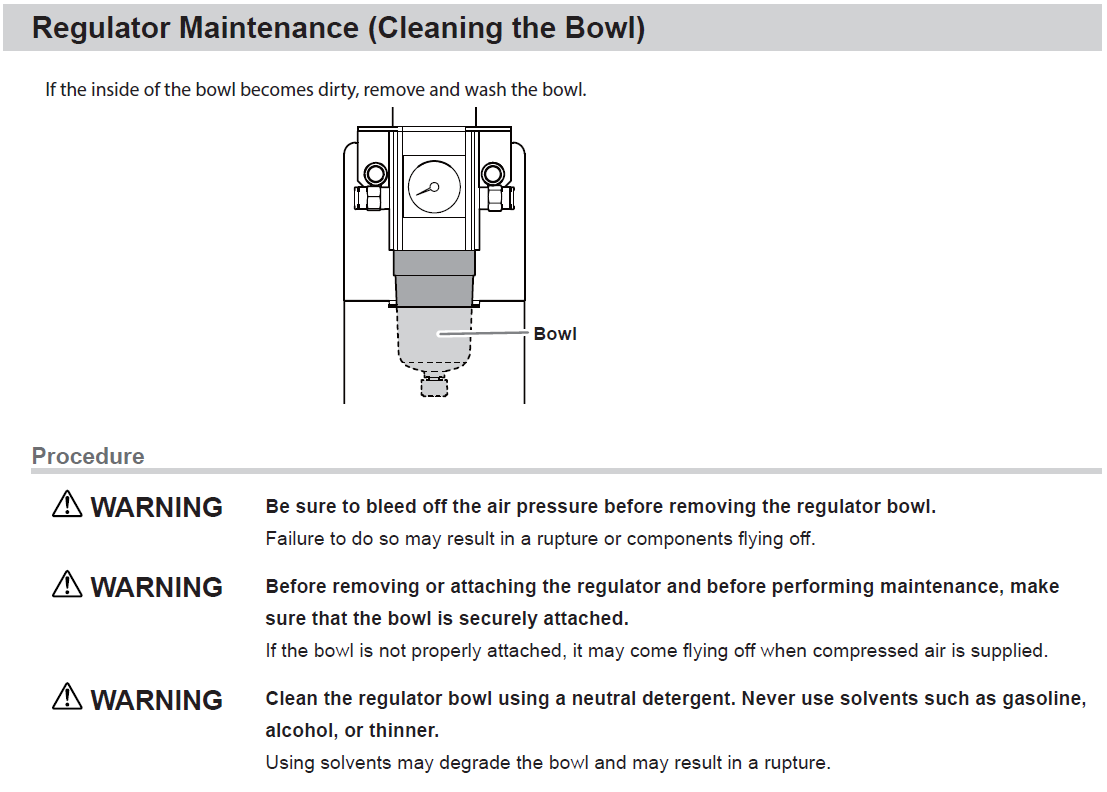

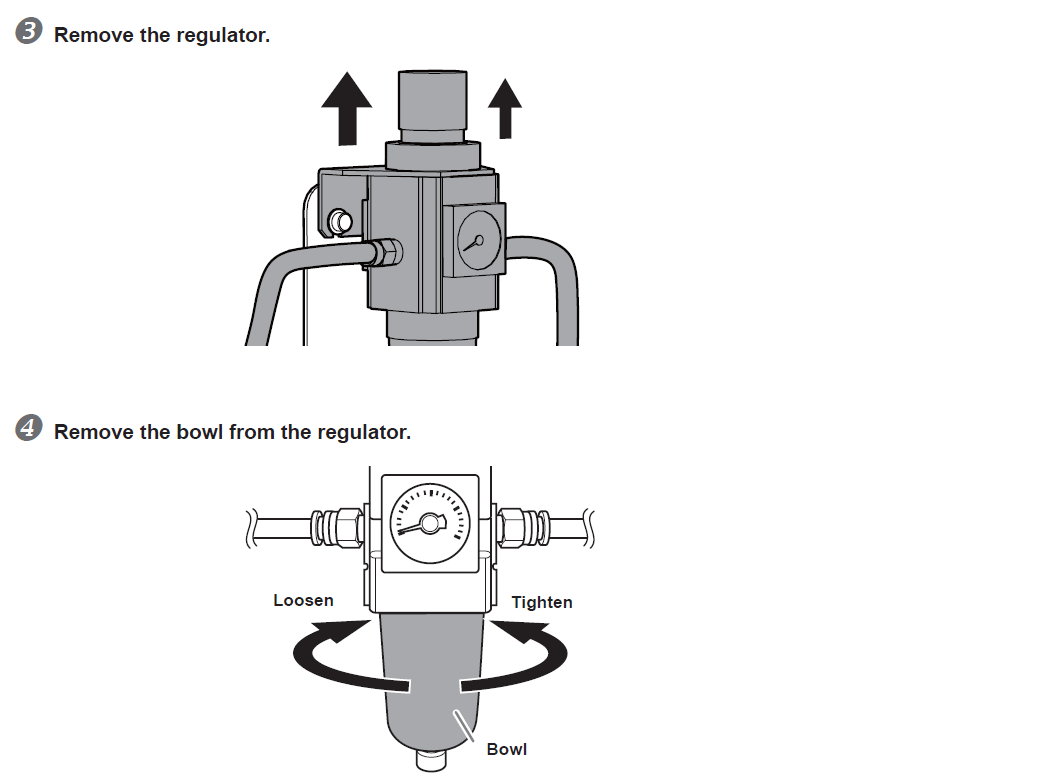

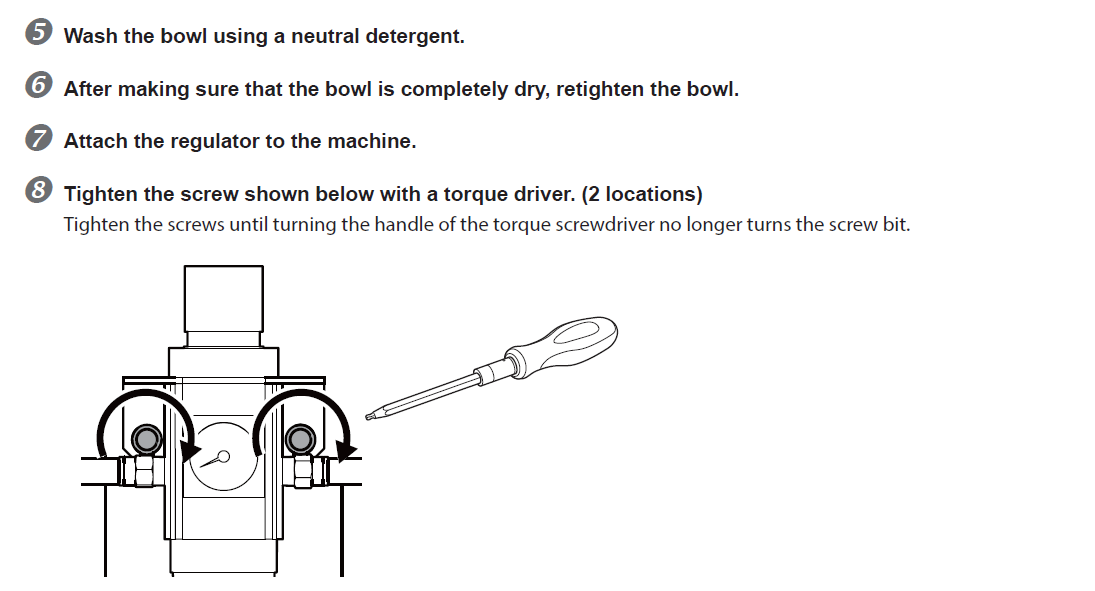

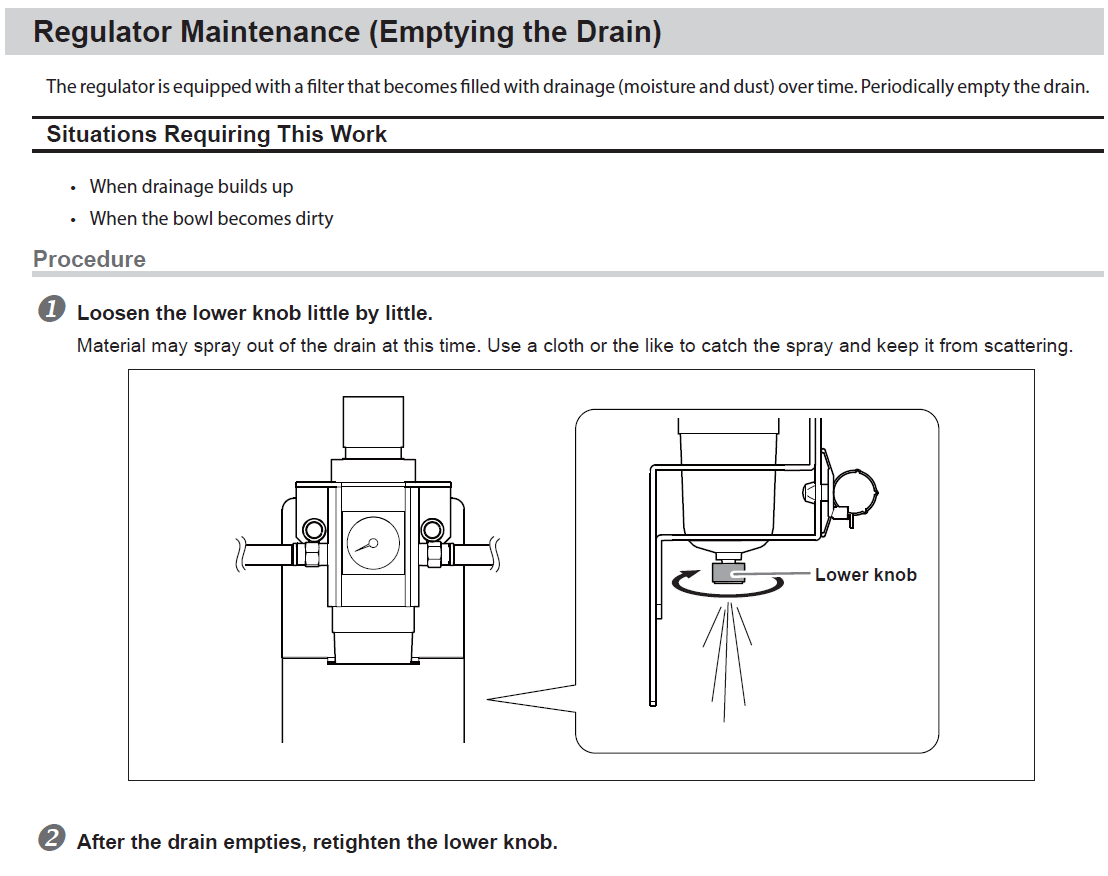

Please regularly drain the compressor and maintain the regulator.

If water accumulates in the compressor or regulator bowl, water droplets can enter the interior of the machine through the air blow.

If water droplets get inside the machine, parts of the machine can rust.
