Daily Maintenance <DWX-51D>
Automatic correction
Automatic correction should be performed when milling accuracy drops or when “The * axis position has been shifted” errors occur.
It is not recommended to perform automatic correction as regular maintenance when no issues have occurred.
Reference video
Retightening the collet
Carry out the retightening after 200 hours of use since the last retightening.
Also, perform retightening if “The milling bur chucking has slipped out” error or “The Z-axis position has been shifted” error occurs.
Reference video
Cleaning inside the machine
Do not use an air duster or pneumatic blower to clean the inside of the machine. Milling waste may enter the machine and cause it to malfunction.

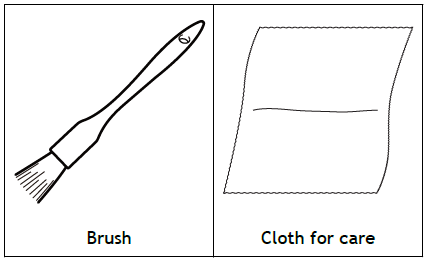

Please use a brush, cloth, cotton swab or dust collector.
Reference video
