The fixing screw has broken. <DWX-51D>

The screws used to secure the material or fasten the automatic correction jig may break or deform.

If the material is not properly secured, the quality of the milling surface is likely to deteriorate.

◆ Tightening screws with milling waste in the screw holes may result in materials and components being fixed at an angle.

If this is the case, the material will not be adequately secured and will rattle during machining. Remove milling waste from the screw holes to ensure that the part or material is fixed straight.

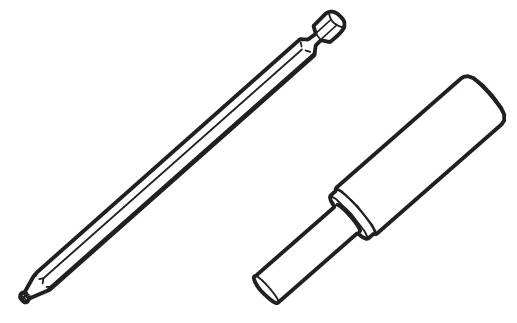

◆ The torque screwdriver may be broken and the torque to be tightened may be weak.

In this case, it is recommended to purchase a torque screwdriver.

*DWX-51D is no longer in production. Therefore, this part may not be available.

◆ The screws can be purchased in the same way as the milling bur.

*DWX-51D is no longer in production. Therefore, this part may not be available.

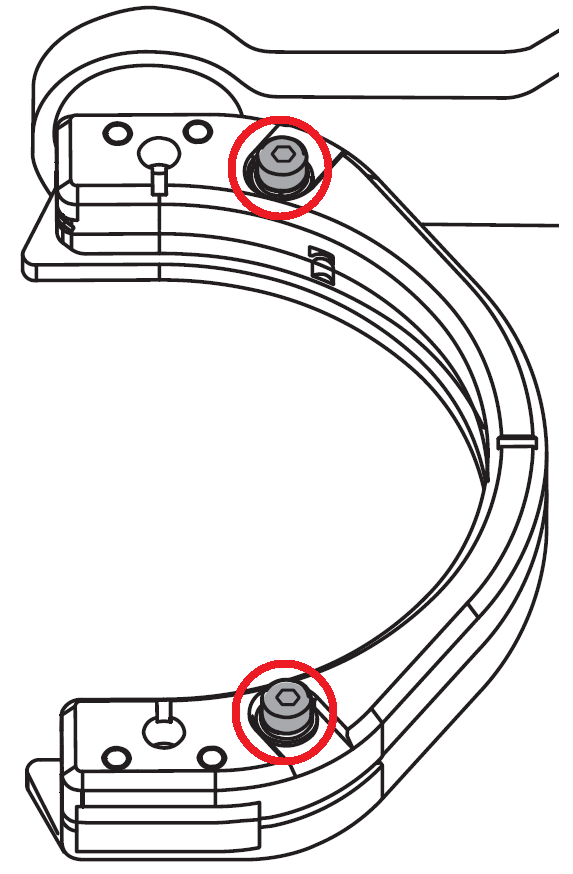

Clamp

• Screw:  3000000393  CAP-SCREW,4*20 NI SPW+WSH 4*9*0.8

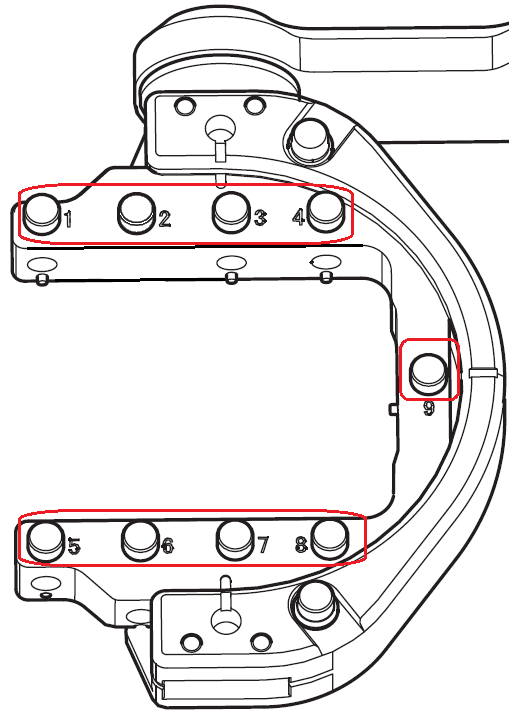

Pin-type material adapter

• Screw:  1000018647  CAP-SCREW,4*7
