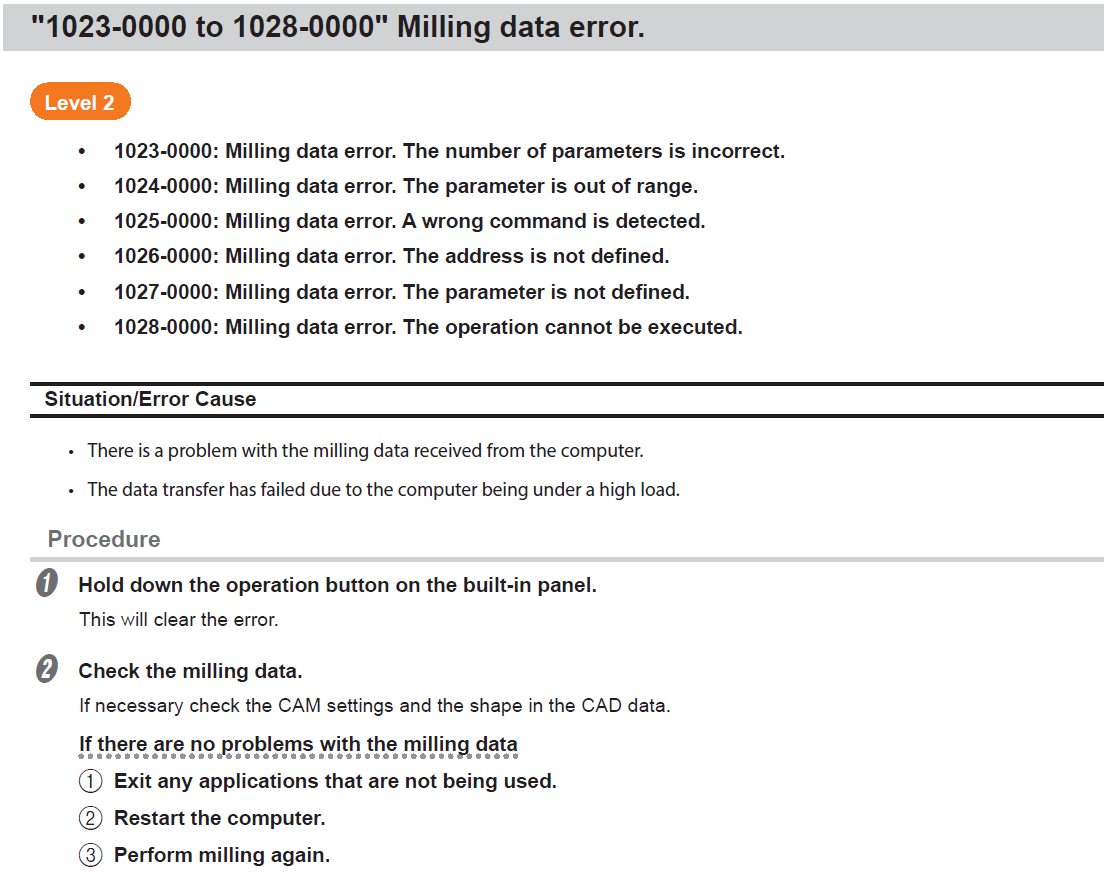

1023-0000 to 1028-0000 Milling Data Error <DWX-42W>

If the cause is still unknown after reviewing the milling data, recalculate the milling data.

If the error recurs, contact the dealer from whom you purchased the milling machine to check the milling data.

If there is no problem with the milling data and the error recurs, check the following.

• Are genuine USB cables being used? If an extension cable or USB hub is used, replace it with a genuine USB cable only and check if the error recurs.
• Try removing the USB cable, changing the insertion port, or replacing it with another cable.
• Does your VPanel use the same PC as your CAD or CAM software? High PC workload can lead to errors. Ensure that errors recur without any additional operations during milling.

If errors recur, contact your authorized DGSHAPE/Roland DG Corporation dealer.
