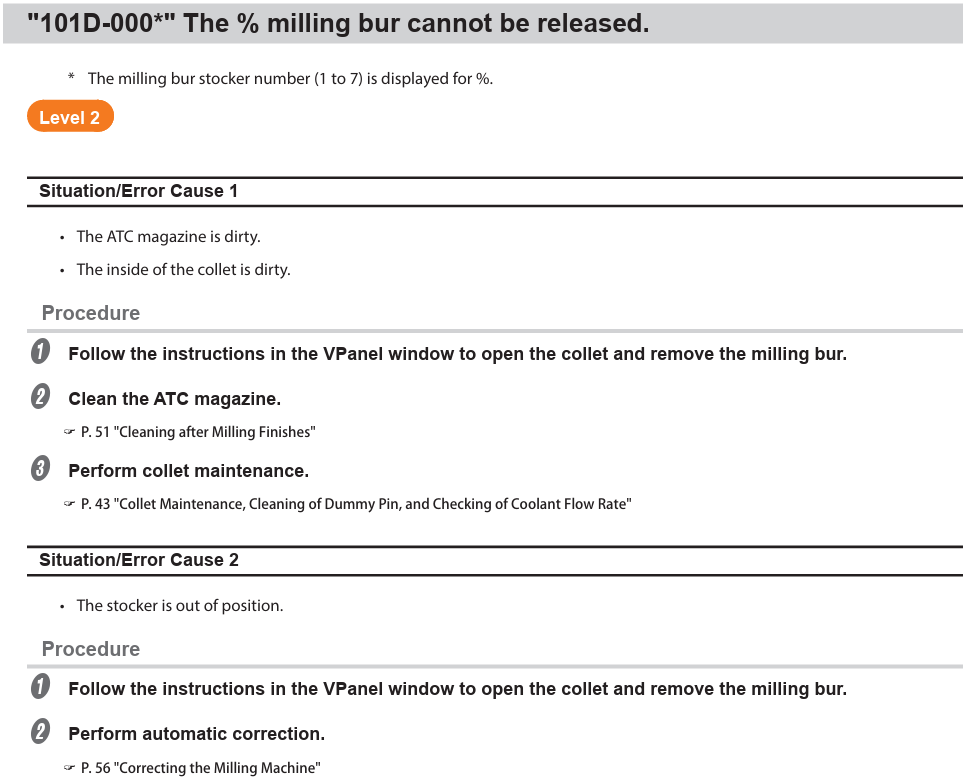

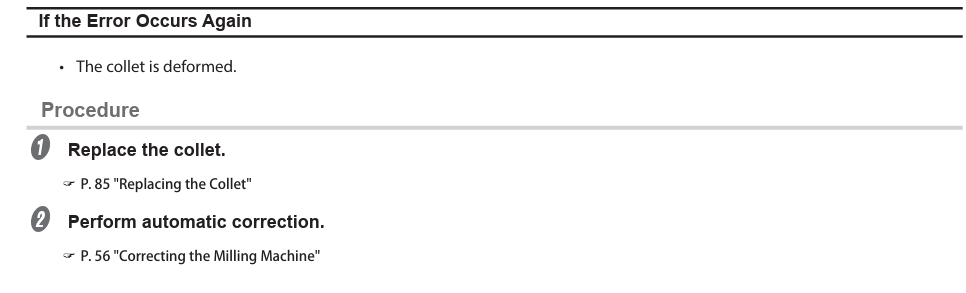

101D-000* The % milling bur cannot be released <DWX-42W>
*We are guiding the user through the user's manual page.
Possible causes
◆ Milling waste adheres to the collet, which is the part that chucks (grips) the milling bur.
Detach the collet and perform collet maintenance.
Reference video
◆ If the positional relationship between the stocker and the milling bur is displaced and the milling bur cannot be released, please perform automatic correction.
Abnormal noise sounds when the milling bur enters the stocker.
Reference video
◆ Collet deformation, cracks, chipping
Replace the collet. The collet is consumable.
*The collet must be ordered from your dealer in the same way as the milling bur.
*Brand-new spindle is supplied with a collet.
