Option/Supplies/Accessories <DWX-52DCi>
If you are unsure when ordering parts, please refer to this page. You can purchase accessories and supplies from the distributor and replace them yourself.
Parts that require replacement by an engineer (repair worker) cannot be purchased.
- USB cable
- Cleaning tool ZCT-4D
- Adaptor rack for disc-type workpiece ZR-52D
- Adaptor ID label (A to F)
- Adaptor ID label for option (G to Z)
- Pin-type workpiece adapter ZV-52D

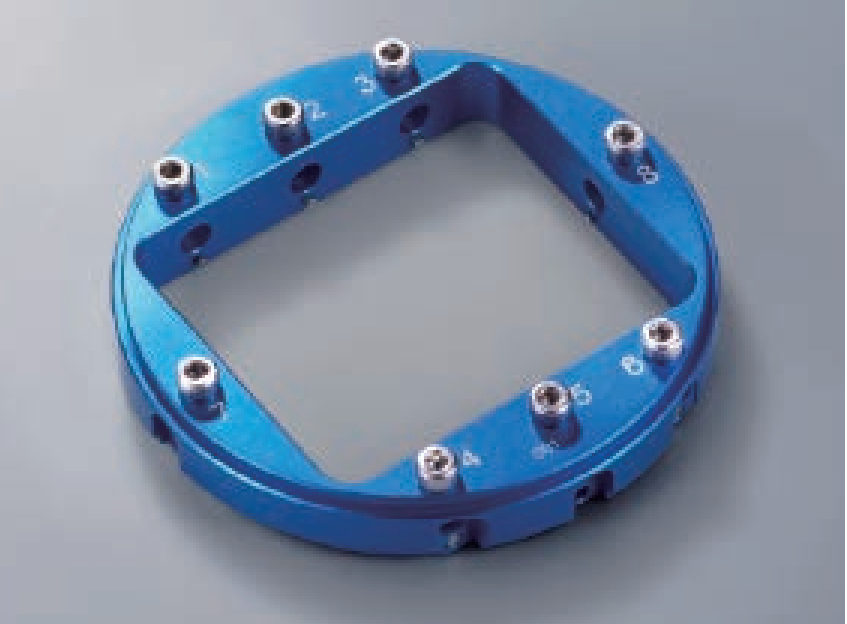

- Disc-type workpiece adapter ZMA-52DC-6
There are two types of spindle units. Check the spindle installed on the machine.

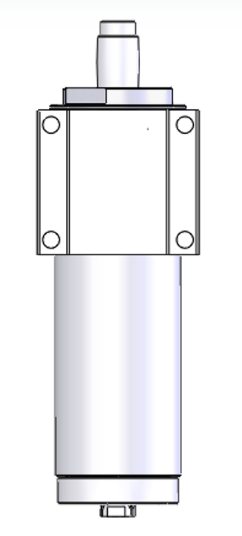

ZS-4D unit is identified by the absence of a seal indication on the spindle unit, at the bottom right of the front cover, or at the bottom right of the open cover.
If the type of spindle is unknown, contact your authorized DGSHAPE/Roland DG Corporation dealer.
Spindle unit |
ZS-4D |

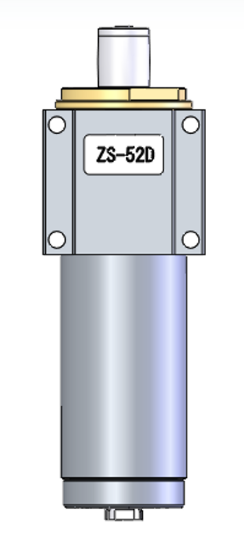

ZS-52D |
Collet | ZC-4D | ZC-52D |
Spindle belt | ZSB-170 | ZSB-180 |

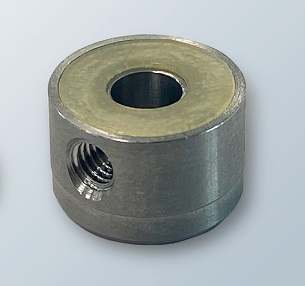

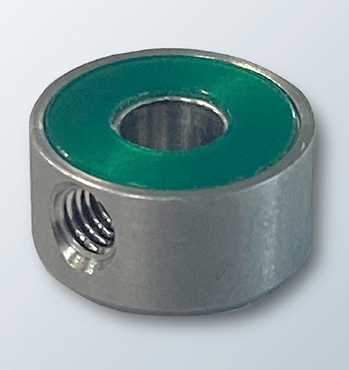

Milling bur holder |
ZBH-4D |
ZBH-52D |
Tool |
Spanner (for spindle) |
Collet attaching/detaching tool |
Power cord, power plug adapter (1 each) |
Regulator (1) Air hose (1) |
Automatic correction jig (1) *Body excluding the adaptor |
Detection pin (1) |
Milling bur positioner (1) |
Torque screwdriver (1) |
Dust collection hose |
Dust collection hose |
Ferrite core (1) |
Hexagonal screwdriver (1) |
Mounting screw |
Screw |
Screw |
Screw |
The automatic correction jig and detection pin may have slightly different shapes from the initial release, but they can still be used with current parts.
A torque screwdriver can be purchased for each part.
