Disc Changer Height Adjustment <DWX-52DCi>
*Only DWX-52DCi is currently available. DWX-52DC is being prepared for use.
*The height of the L-axis can be adjusted at both the stocker and the clamp. The angle is not adjustable.
If disc changing cannot operate correctly, this function can be used to adjust the height of the lift L-axis when attaching and detaching the adapter.
An empty adapter with no material is required.
VPanel [Preference] > [General] > Check [Show advanced settings]

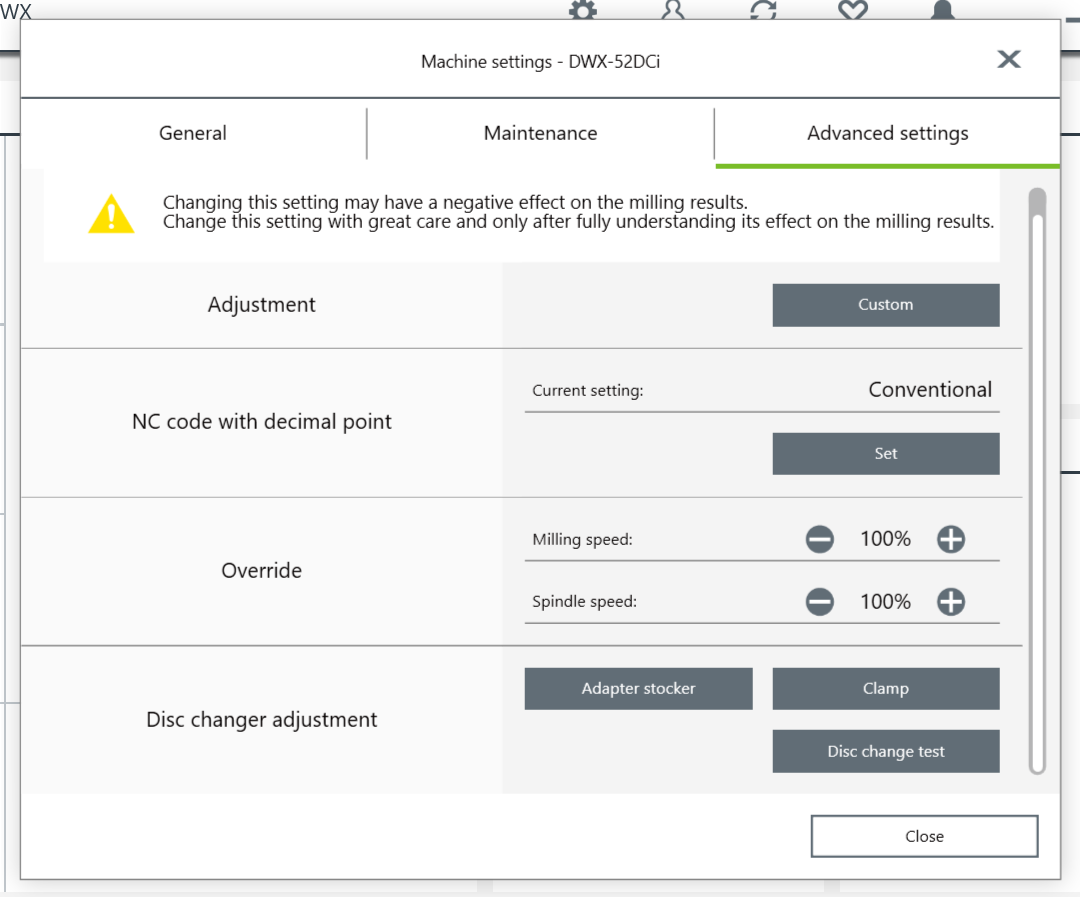

[Machine settings] > [Advanced settings] > [Disc changer adjustment]
1 Adapter stocker adjustment
1.1 Select the type of disc changer.

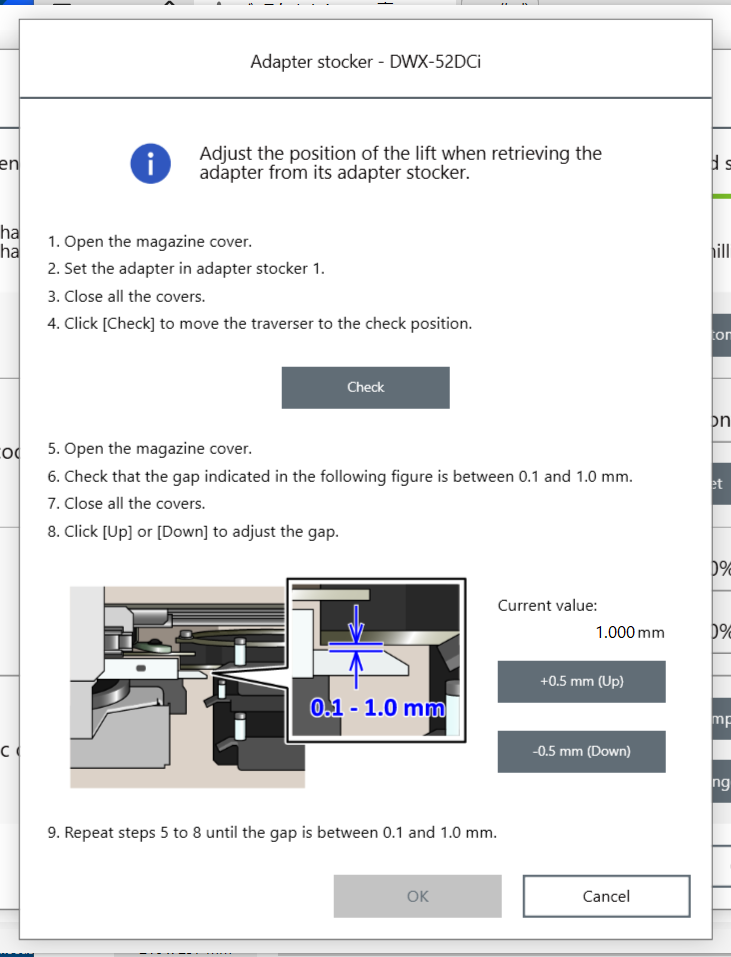

1.2 Adjust the position of the lift when retrieving the adapter from its adaper stocker.
Adjustable range of adapter stickers: -1.5 [mm] to 1.5 [mm]
When the value is changed, the lift will return to its original position once. Do not open the covers during operation. If an error occurs during operation, the operation will stop, and an error message will be displayed.
Conditions for error occurrence:
- The cover was opened during operation.
- Adjustment made beyond the adjustment range.
- Communication with the machine is interrupted (USB disconnected).
- Other potential error conditions on the machine side.
In case of an error
Be cautious NOT to immediately restart the machine to resolve the error. Click the [Cancel] button before restarting to restore the original adjustment values. If you restart it first, you will not be able to revert the changes.
2 Clamp adjustment
2.1 Select the type of disc changer.

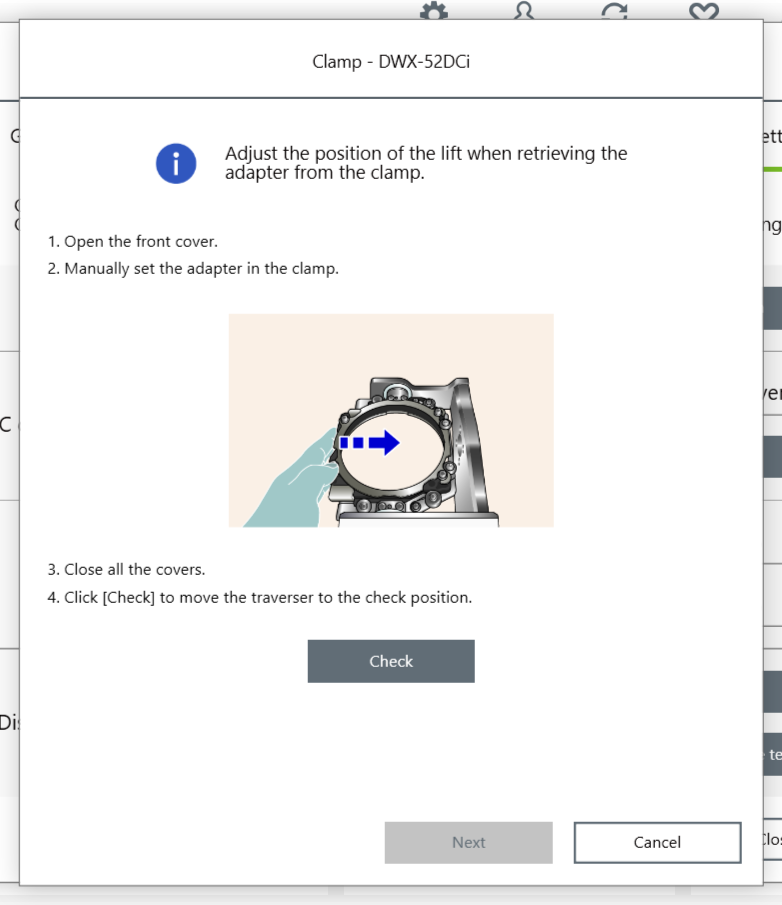

2.2 Manually set the adapter in the clamp.
2.3 Adjust the position of the lift when retrieving the adapter from the clamp.
Adjustable range of the clamp:

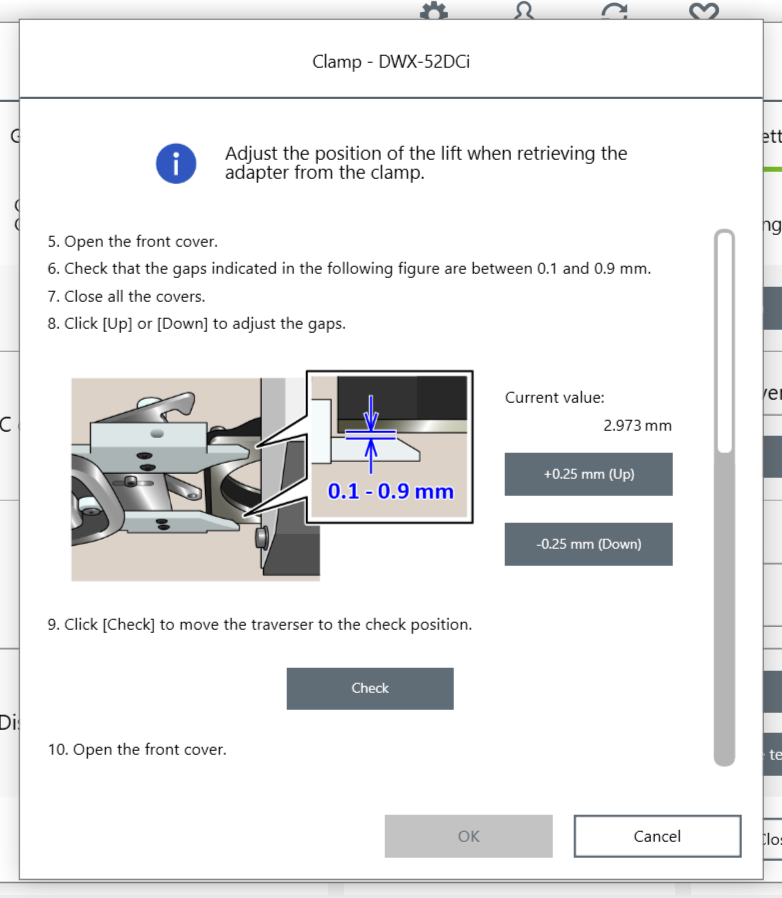

- Type 1 -5.0 [mm] to 1.5 [mm]
- Type 2 0.0 [mm] to 5.0 [mm]
If the value is changed, the lift will return to the original position once. Do not open the covers during operation.
Drag the right bar to scroll the screen down.

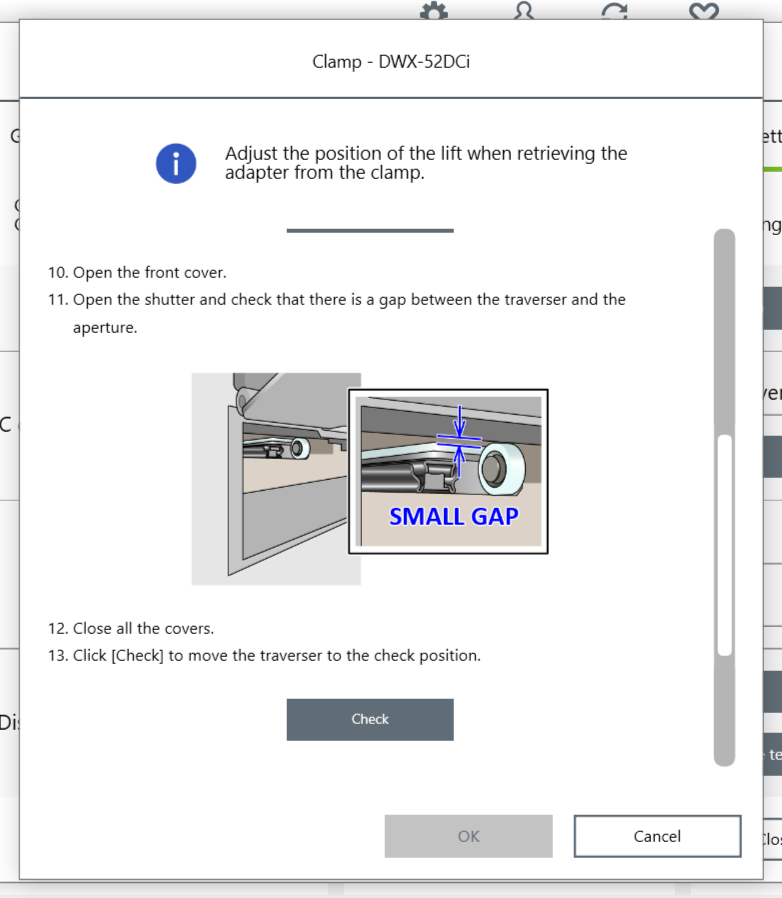

2.4 Open the shutter and check that there is a gap between the traverser and the aperture.
Drag the right bar to scroll the screen down.
2.5 Check the gaps.

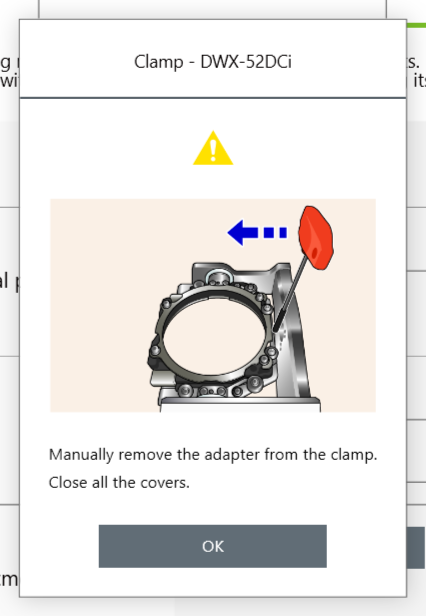

2.6 Manually remove the adapter from the clamp.
Finally, verify the operation with the “Disc change test”.

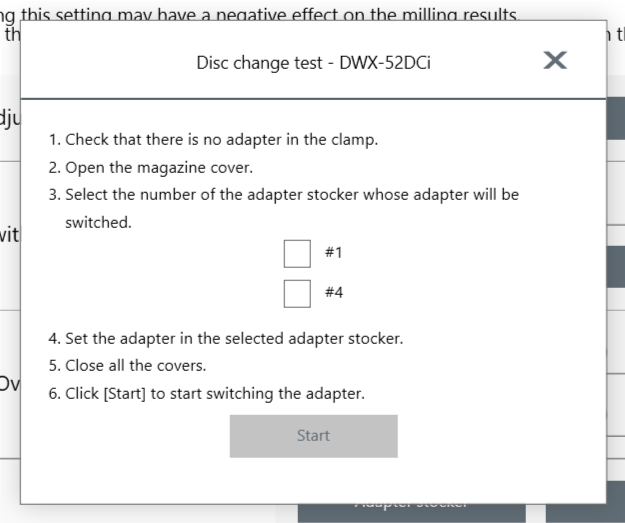

3 Disc change test
