How to Install VPanel <DWX-53DC/52D/52DC/52DCi/42W>

When replacing a PC connected to the DWX, the following two software applications need to be installed on the new PC.

• Driver
• VPanel

1  Download the latest VPanel.

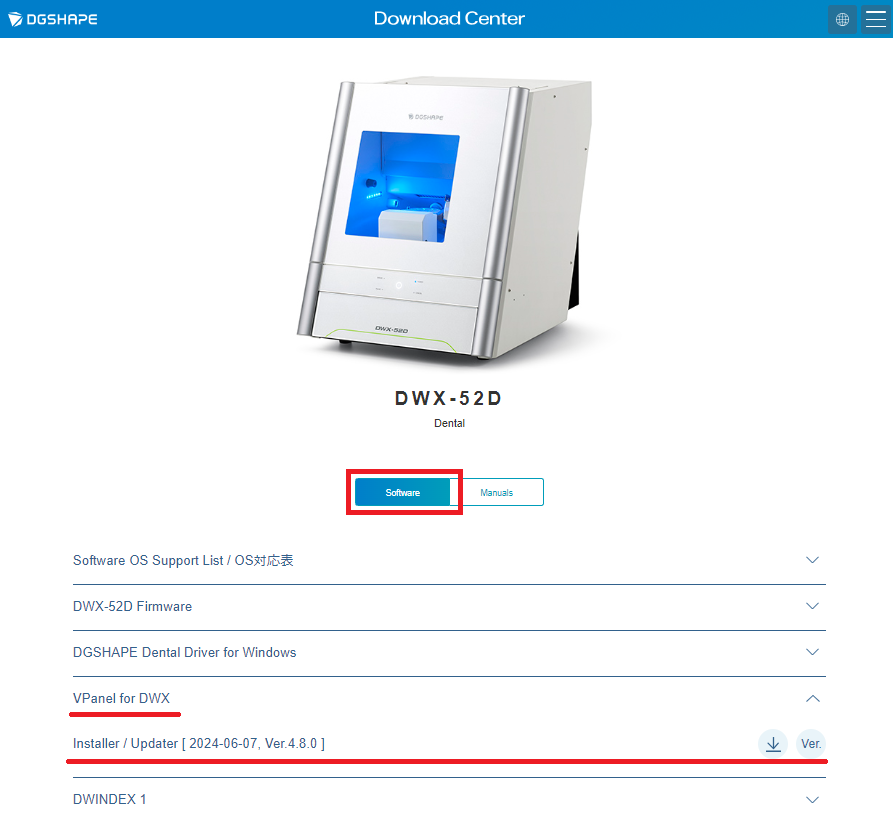

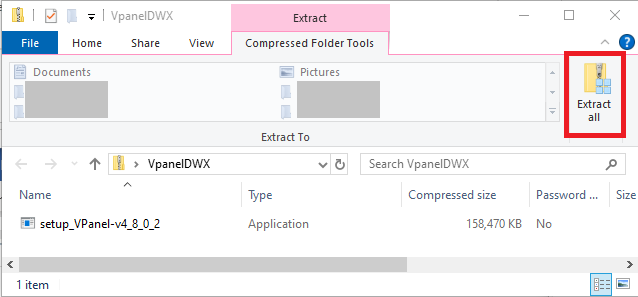

After clicking in the order below, download the file, unzip the ZIP files (Expand All) and save them to an easy-to-access location such as the Desktop.

https://downloadcenter.rolanddg.com/

[DWX-***] > [Software] > [VPanel for DWX]

2  Install the VPanel for DWX

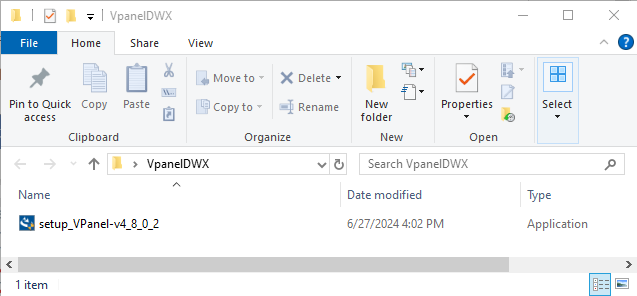

Click "SETUP**.exe".

1. “Do you want to allow this app to make changes to your device?” > Click [Yes].
2. Open the wizard >  Click [Next].
3. Licensing agreement > Select [I accept] and click [Next].
4. Installation Location > Click [Next].
5. Installation > Click [Install].
6. Click [Finish] to complete the installation.
