How to attach the milling holder to the detection pin.

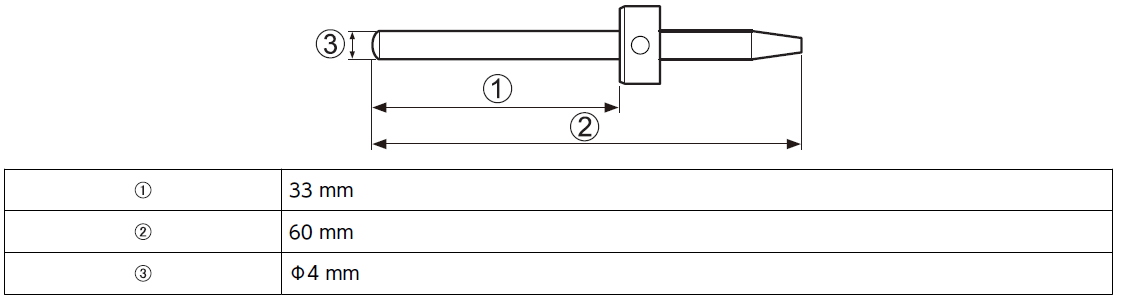

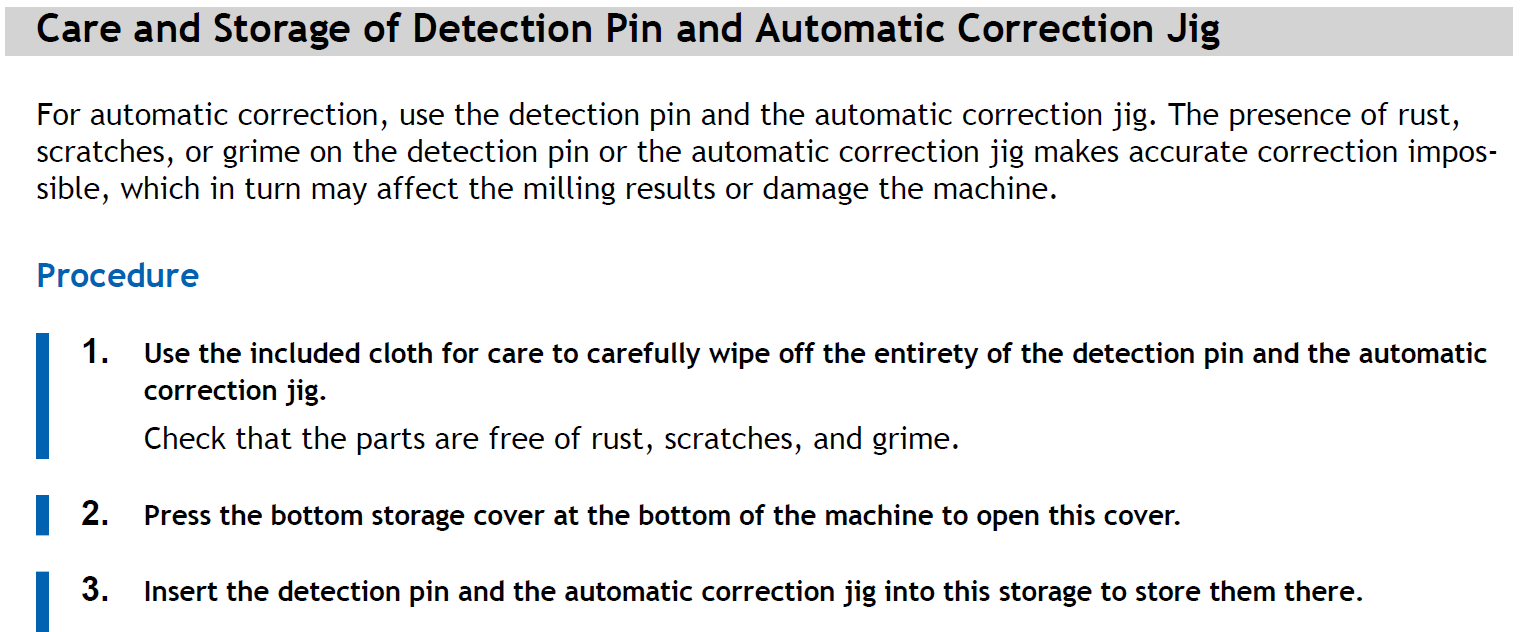

The "Detection pin" used for automatic correction and collet tightening is a tool designed with a size larger than the milling bur.

*Do not intentionally remove the milling bur holder from the detection pin.

◆ Subjects: Models with spindle ZS-4D

DWX-4/DWX-51D/DWX-52D/DWX-52Di/DWX-52DC/DWX-52DCi

◆ Subjects: Models with spindle ZS-52D/ZS-53DC

DWX-52D/DWX-52Di/DWX-52DC/DWX-52DCi/DWX-53DC

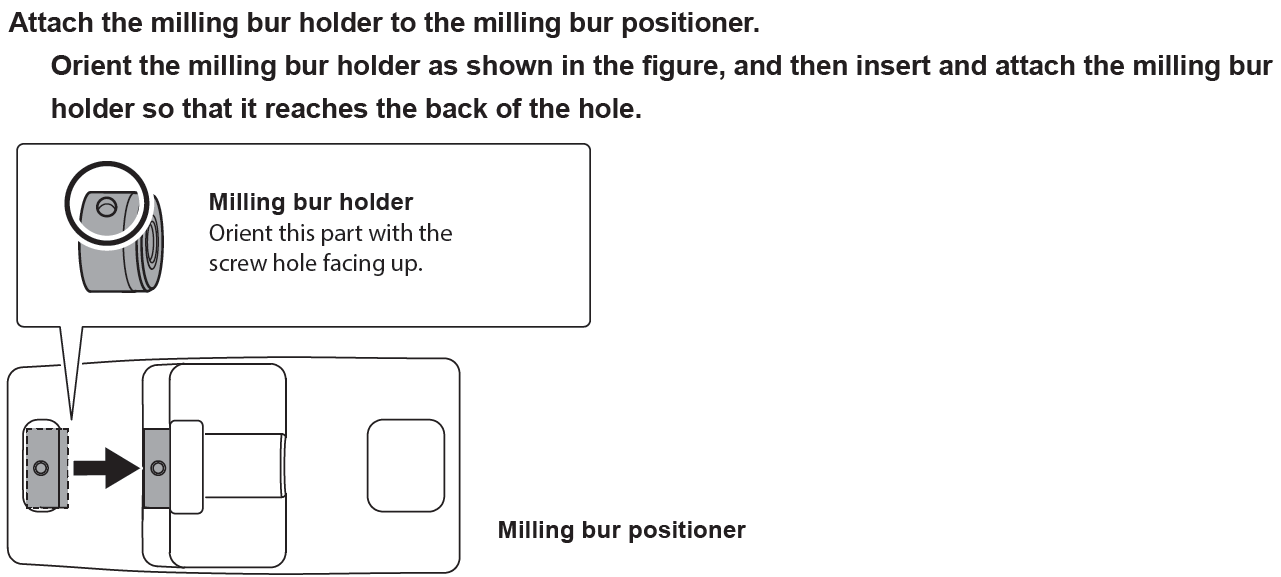

Be mindful of the orientation (up and down) when attaching. The detection pin should be positioned above the point.

Positioning of Detection Pins during Automatic Correction

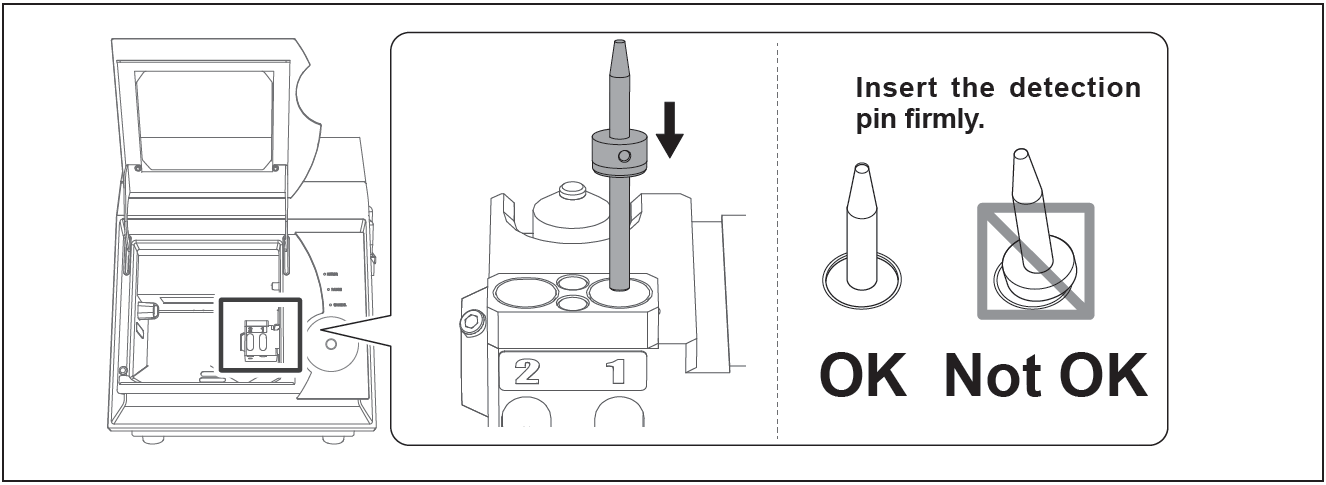

DWX-4: No. 1

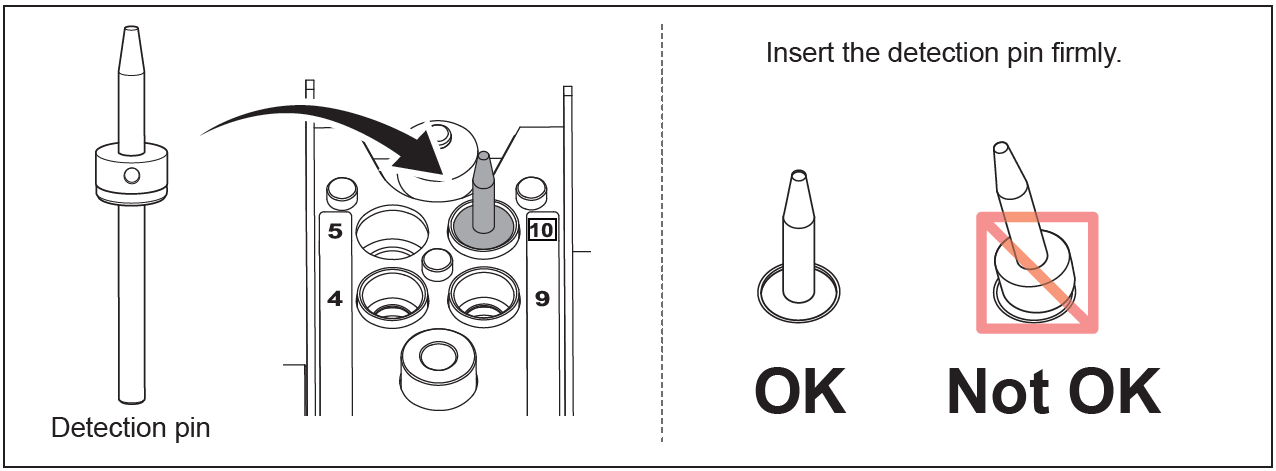

DWX-51D: No. 10

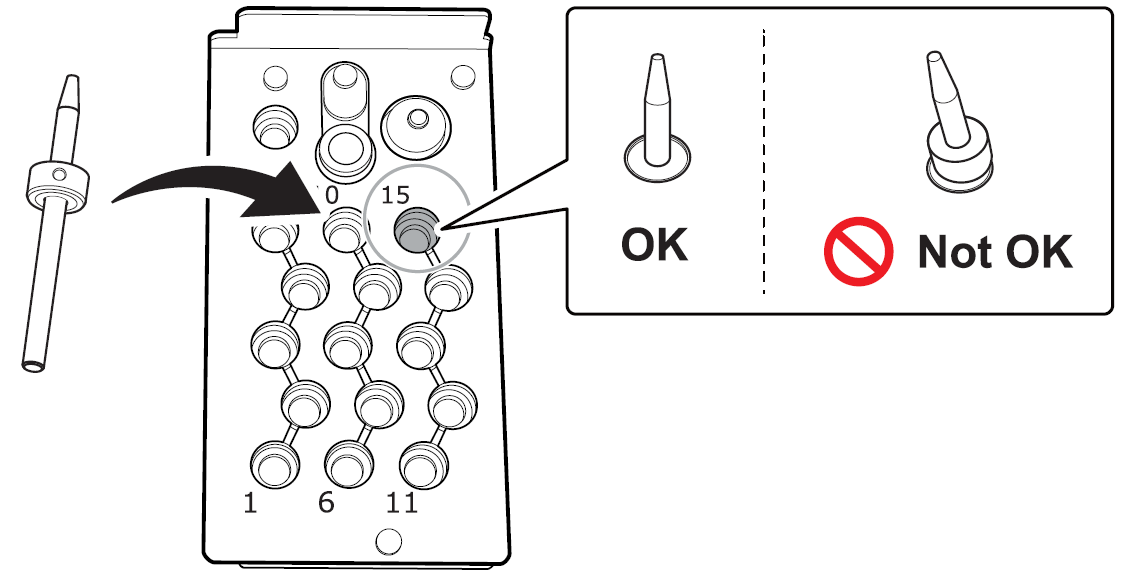

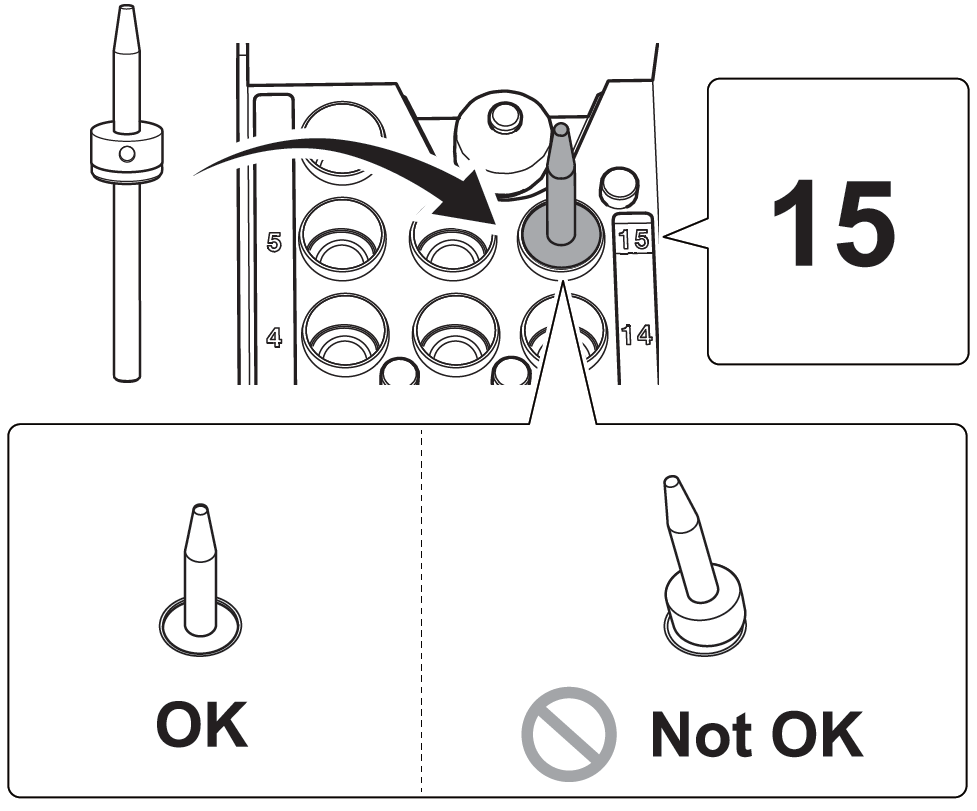

DWX-52D/DWX-52Di/DWX-52DC/DWX-52DCi: No. 15

DWX-53DC: No. 15

*Do not place it in the dummy pin stocker.
