Errors Occur during Automatic Correction <DWX-4W>

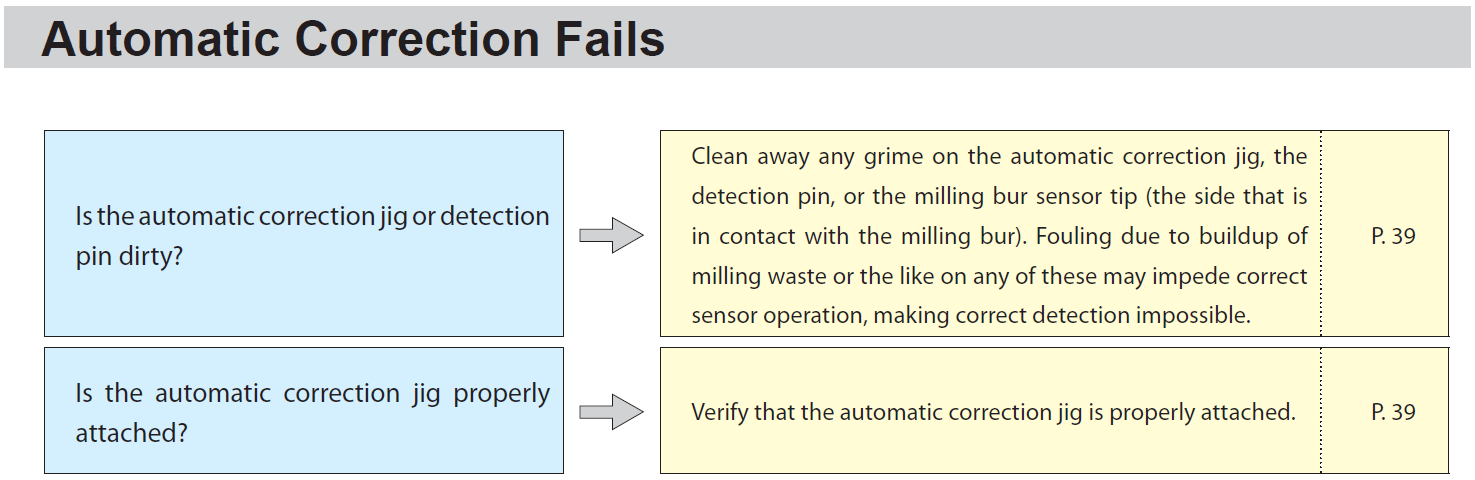

If there are multiple errors due to automatic correction, check the following.
In order to achieve high milling accuracy, the completion conditions for automatic correction are strictly defined.

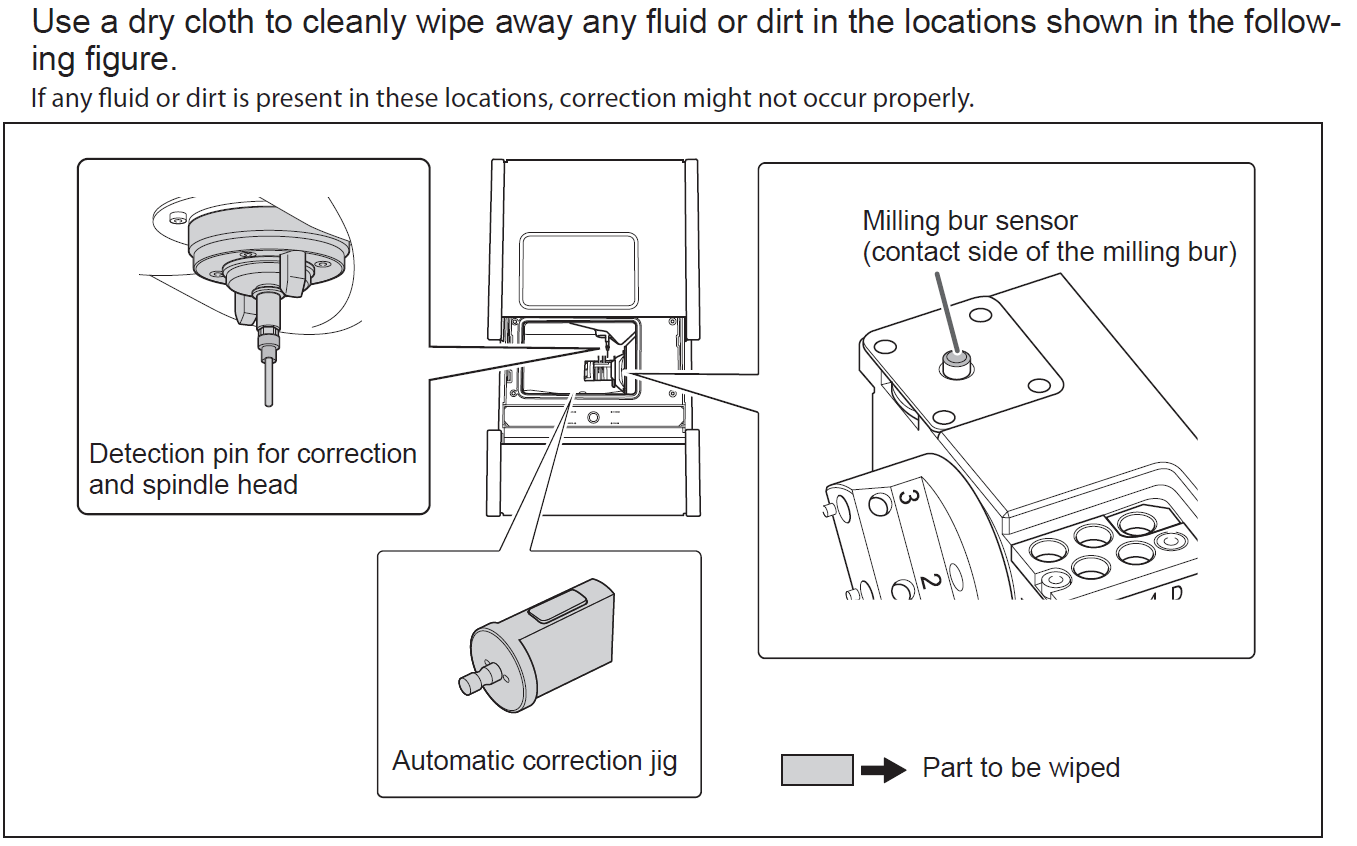

- Have you touched the automatic correction jig or detection pin with a hand with grease or hand cream? Wipe well with a clean cloth or paper towel.
- Check whether all the milling waste and coolant have been completely removed from the ceiling or bellows.
- Errors related to the diameter or length of the detection pin often occur due to contamination in the area where the machine stopped due to the error. Clean the area where the machine stopped.
- Are you carefully cleaning around the milling bur sensor?
- Wipe the side of the stocker as well.
*Cleaning with alcohol (anhydrous) is not recommended in the user’s manual because of the risk of fire.
Reference video
