Meaning of each color of lights on the machine (meaning of each color of status lights).

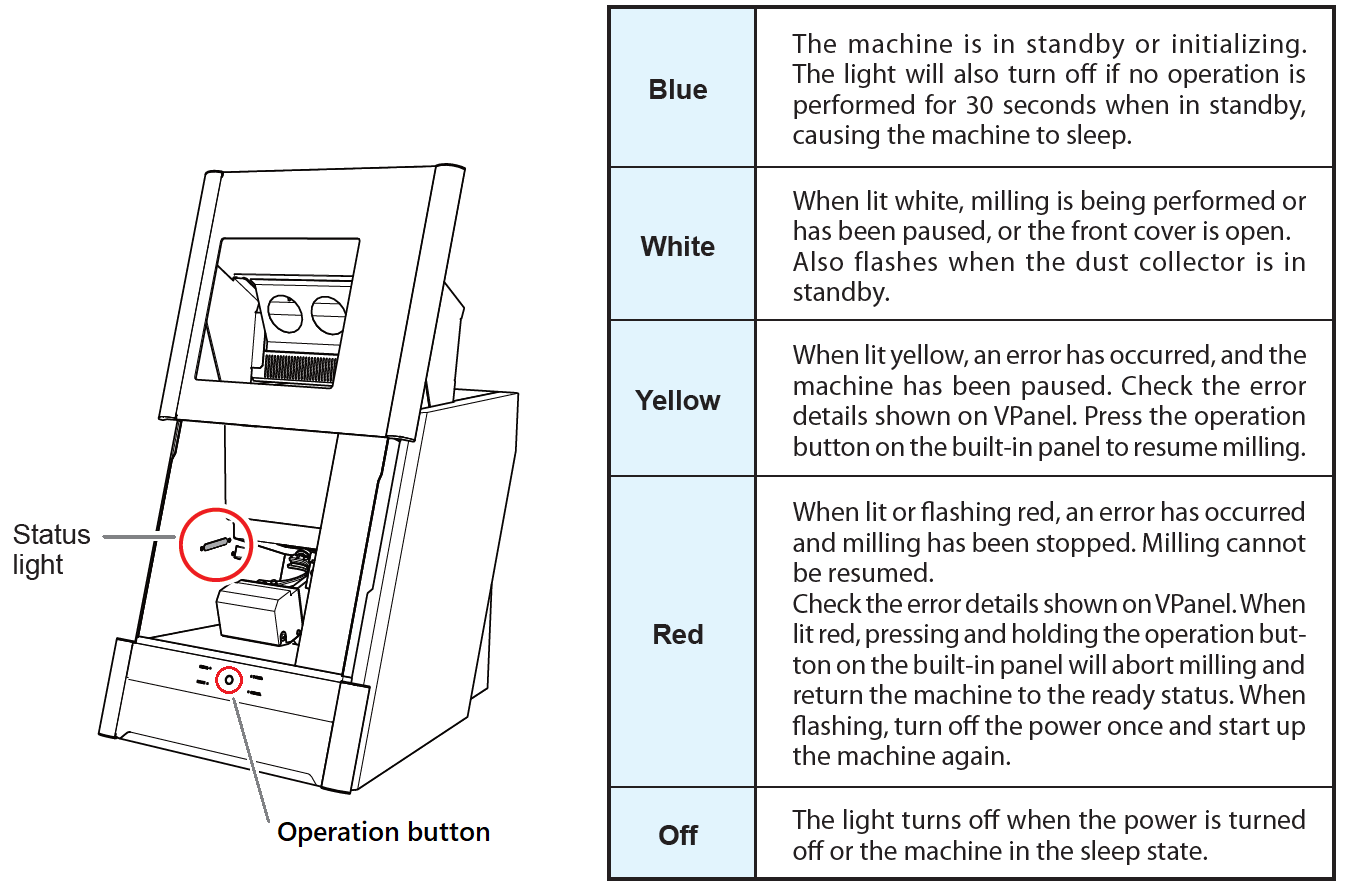

DWX-4
How to clear the error.
- Lit in yellow: Press the operation button to restart the milling.
- Lit in red: Press and hold the operation button to clear the error.
- Flashing in red: Reboot the machine.

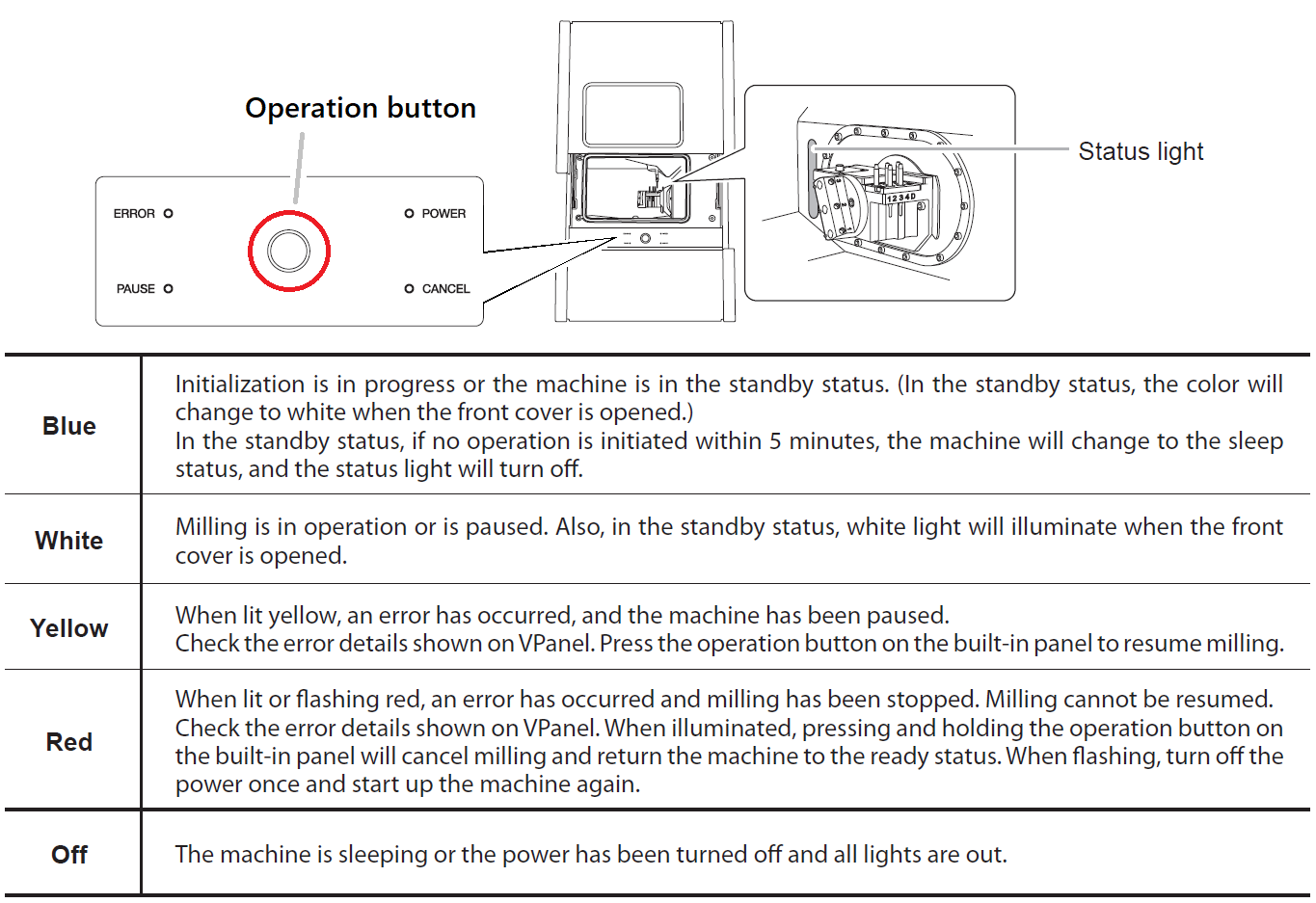

DWX-51D/DWX-52D/DWX-52Di
How to clear the error.
- Lit in yellow: Press the operation button to restart the milling.
- Lit in red: Press and hold the operation button to clear the error.
- Flashing in red: Reboot the machine.

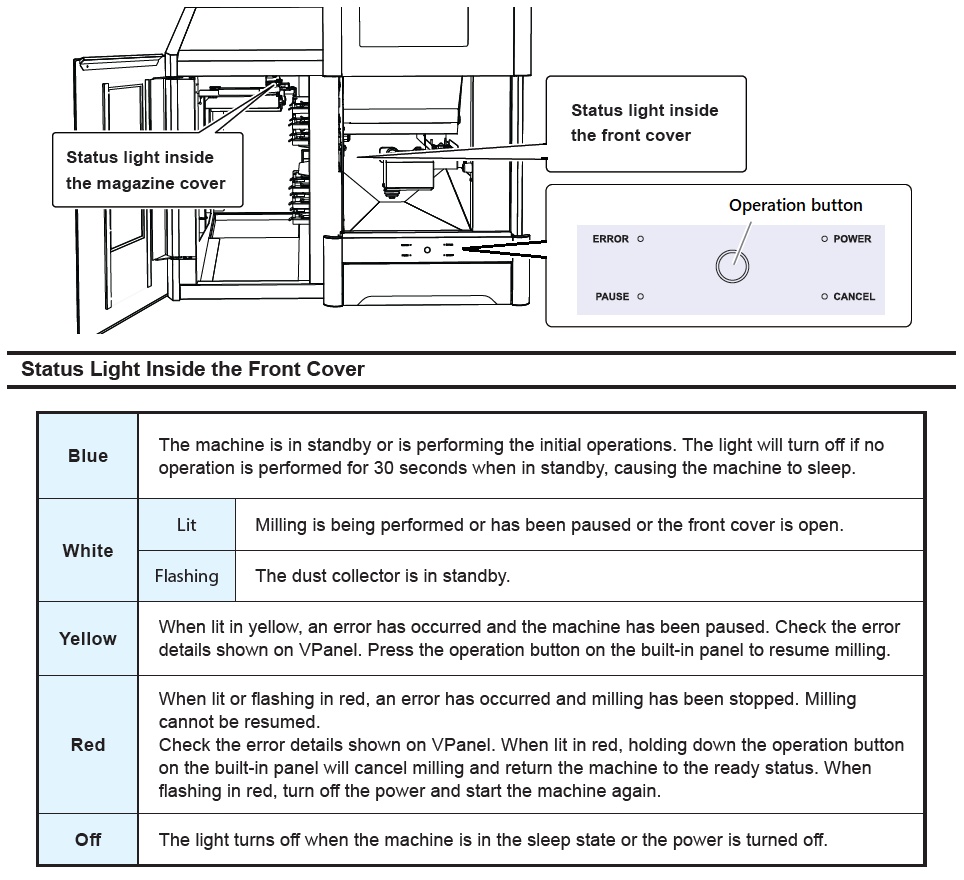

DWX-52DC/DWX-52DCi
How to clear the error on the front cover side (milling section side).
- Lit in yellow: Press the operation button to restart the milling.
- Lit in red: Press and hold the operation button to clear the error.
- Flashing in red: Reboot the machine.

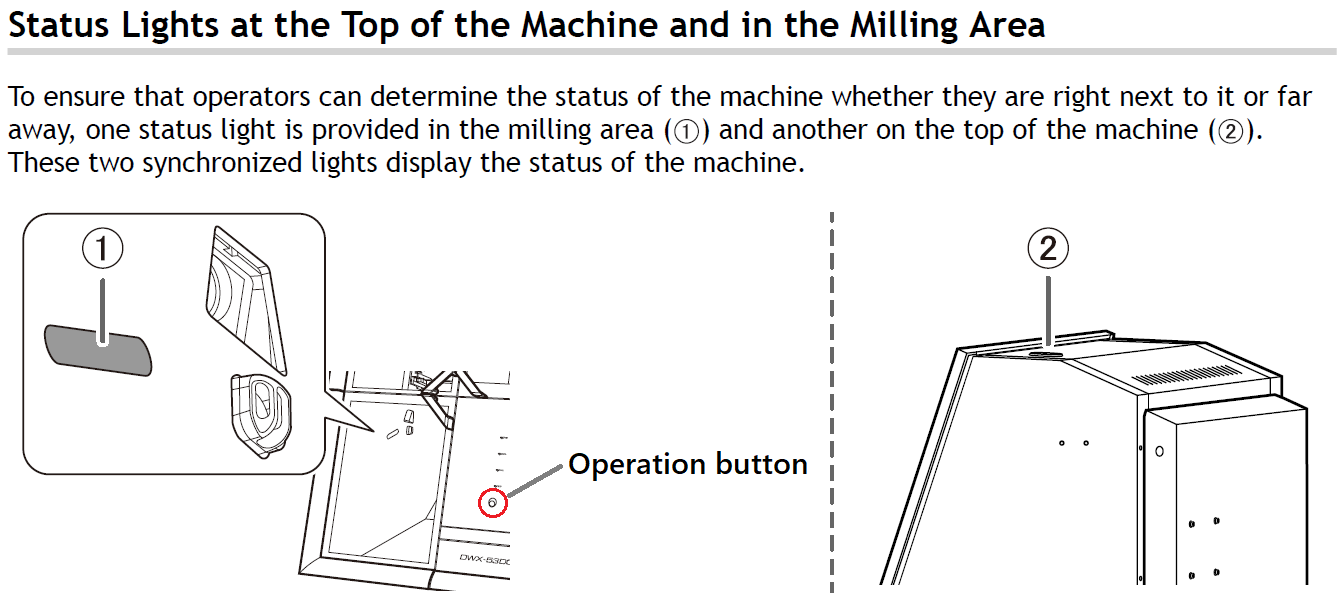

DWX-53DC
How to clear the error indicated by the status lights.
- Lit in yellow: Press the operation button to restart the milling.
- Lit in red: Press and hold the operation button to clear the error.
- Flashing in red: Reboot the machine.

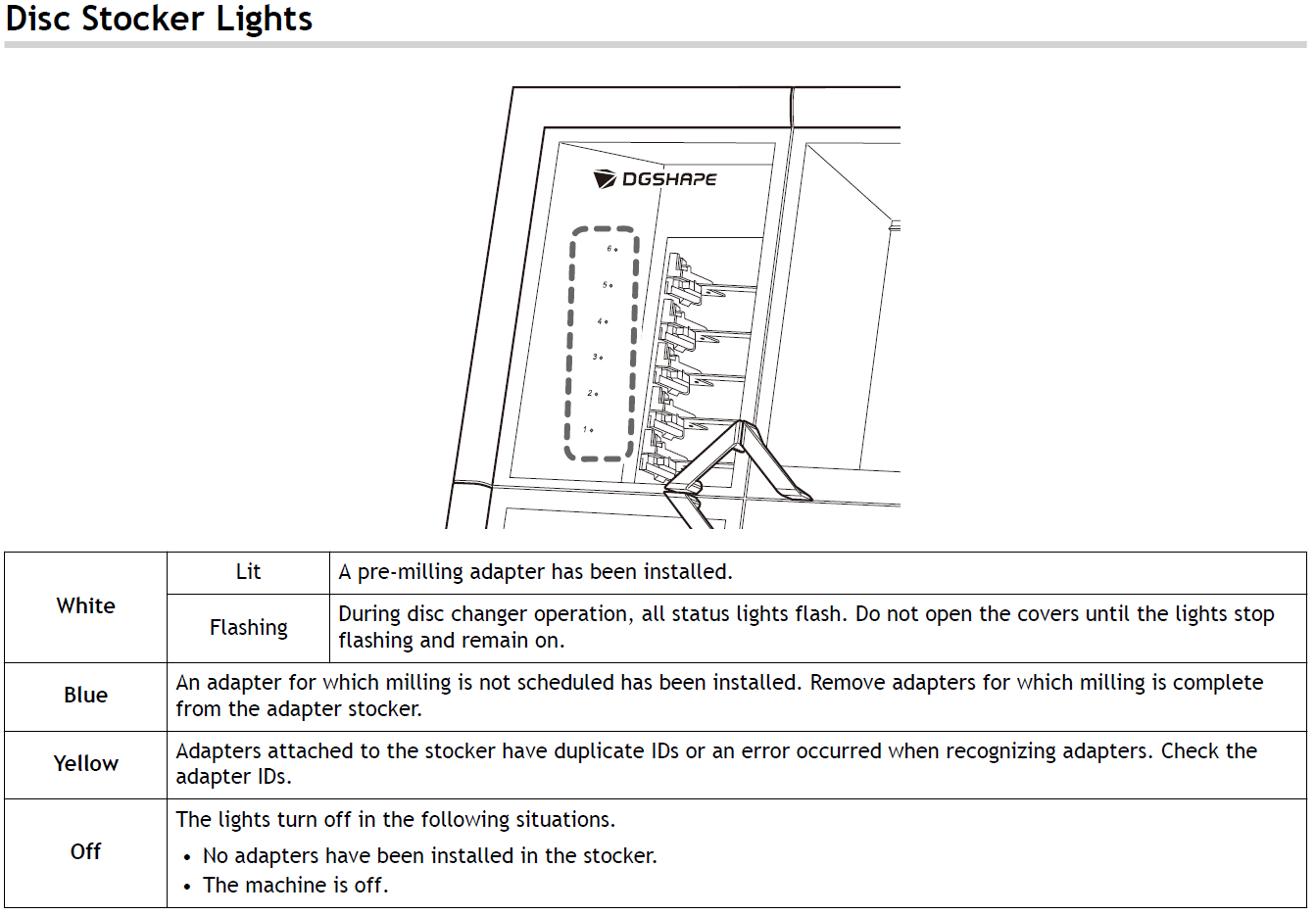

How to clear the error indicated by the disc stocker light.
- Lit in blue:
The adaptor attached to this stocker is recognized as not scheduled for milling. If the adaptor should be scheduled for milling, check the CAM settings. - Lit in yellow:
Check that there are no duplicate adaptor IDs for the installed adapters. If the problem persists, try cleaning the adapter ID parts and the barcode reader.

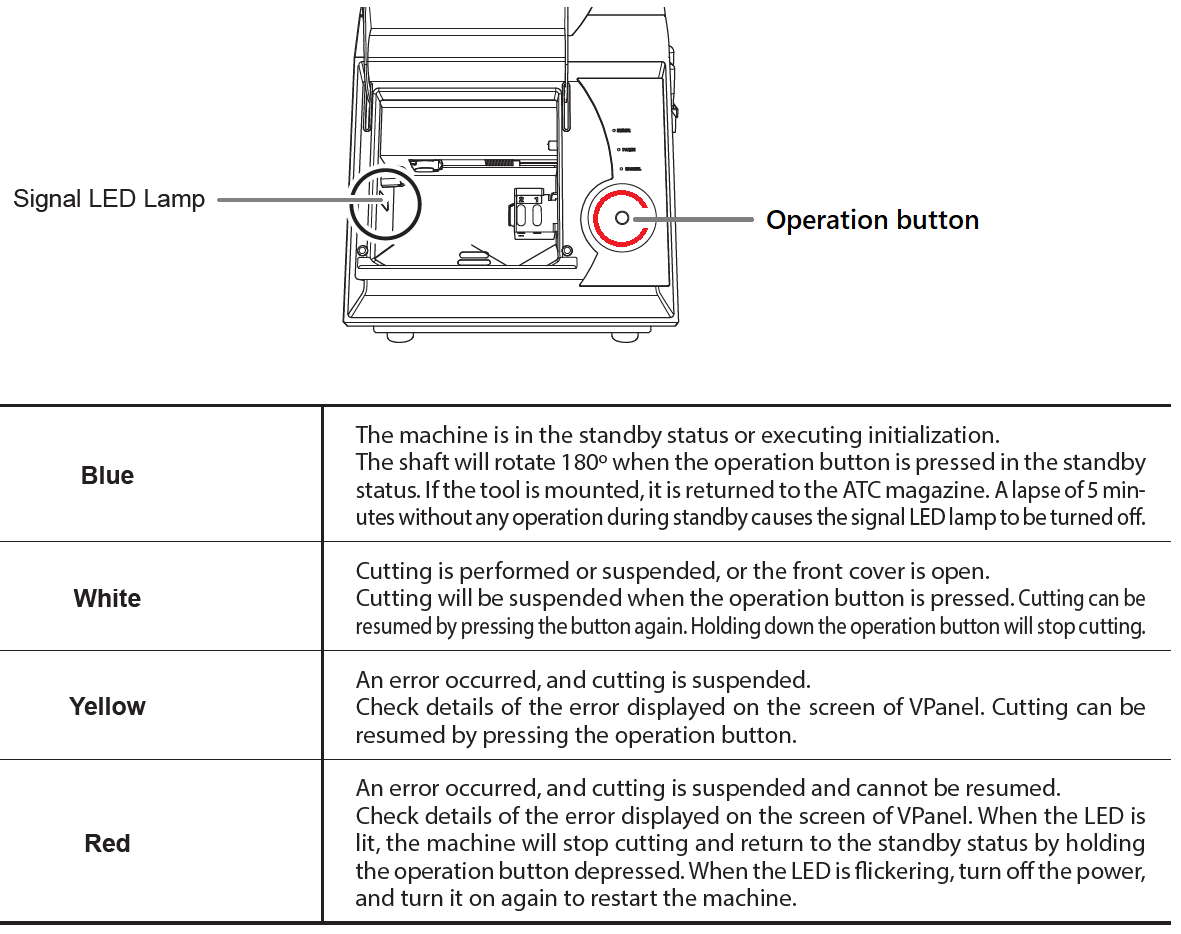

DWX-4W

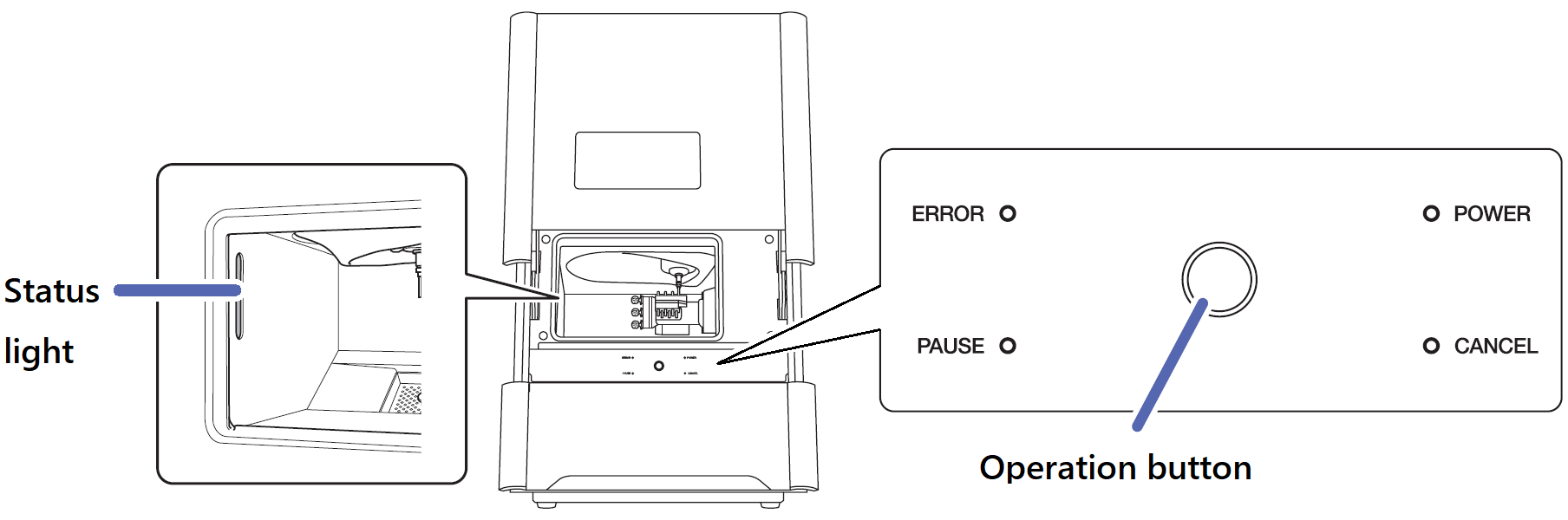

DWX-42W
Displays the milling status on the VPanel main window.
*Which cover opening during operation triggers the [COVER] status will vary depending on the model. Refer to the User's Manual of the model you are using.
